Easy Connect Most Powerful Miniature Servo Drive
(single axis drive with double power)
160A/80VDC, 140A/100VDC, 40A/200VDC

Description

Gold Solo Double Twitter is a very small yet very powerful servo drive

Gold Solo Double Twitter

The World’s Most Advanced and Powerful Miniature Servo Drive (single axis drive with double power).

Provides over 10,000 of Qualitative Watts.

The Ultra High Current Gold Solo Double Twitter which can deliver up to 160A @ up to 75VDC, 140A @ up to 95VDC, and 40A @ up to 195VDC, are advanced high power density servo drives, delivering up to 11 kW power in a 97.02 cm3(5.92 Inch3) compact package 47 x 69.5 x 29.7 mm (1.85″ x 2.74″ x 1.17″).

This advanced, high power density servo drive provides top performance, advanced networking and built-in safety, as well as a fully featured motion controller and local intelligence. Power to the Gold Solo Double Twitter is provided by a DC power source which is isolated from the Mains. The Gold Solo Double Twitter can operate with single or dual power supplies. If separation between the main DC power source and a control supply is required, then a control supply (isolated from the Mains) is required according to the Part Number.

The Gold Solo Double Twitter can operate as a stand-alone device or as part of a multi-axis system in a distributed configuration on a real-time network. The drive is easily set up and tuned using the Elmo Application Studio (EASII) software tools, and is fully programmable with the Elmo motion control languages.

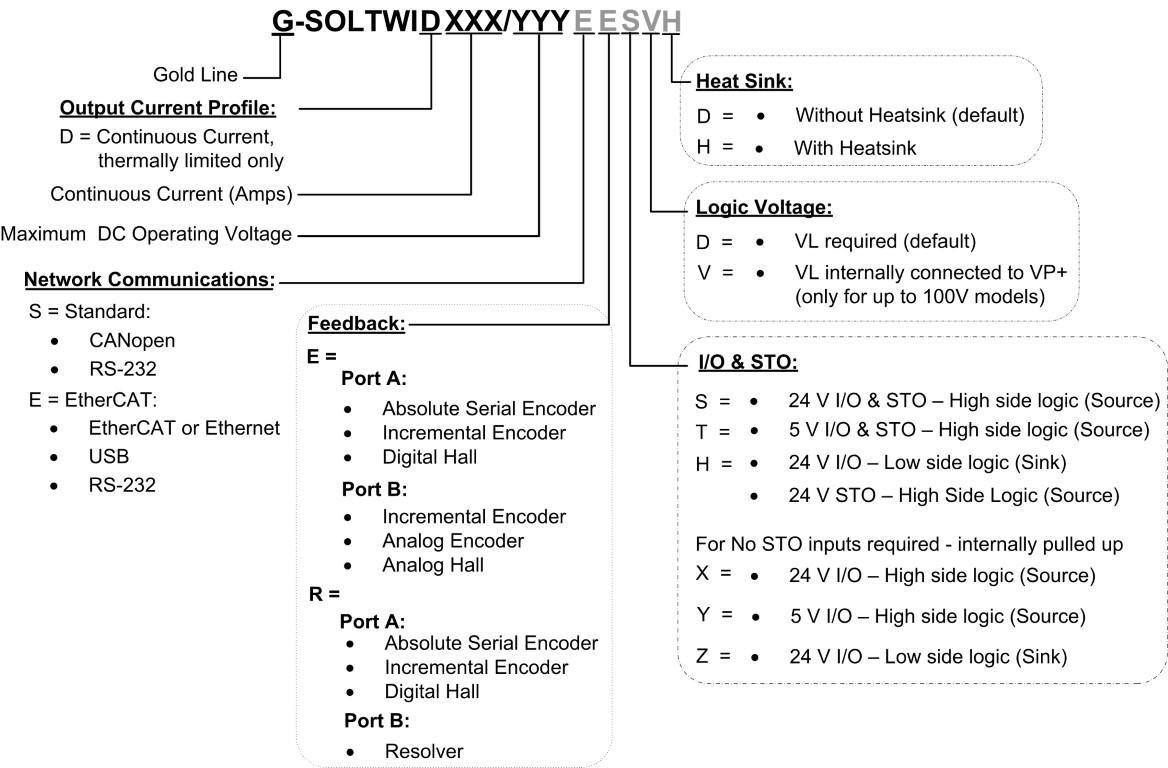

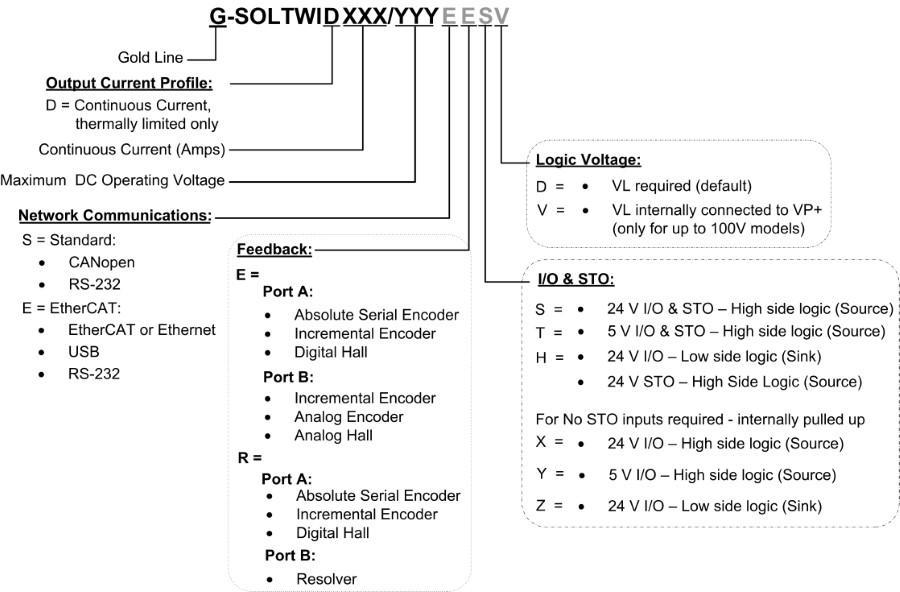

The Gold Solo Double Twitter is available in a variety of models. There are multiple power rating options, different communications options, a number of feedback options and different I/O configuration possibilities.

Gold Solo Double Twitter Highlights:

  • High power density, over 10000 of “Qualitative” Watts
  • Ultra high current – up to 160A/80V, 140A/100V
  • Easy to connect configuration
  • Record-setting weight of only 18-22 grams (less than 1 ounce)
  • Ultra Small, Ultra Efficient, designed to be mounted on a PCB
  • Advanced networking by EtherCAT Or CANOpen
  • Wide Operating ranges:
    • “80VDC”,11VDC- 75VDC
    • “100VDC”, 11VDC- 95VDC
    • “200VDC”, 20VDC- 195VDC
  • Supports any feedback sensor in single, dual and gantry loop configurations
  • Incorporates Proprietary “Fast and Soft Switching Technology” resulting in >99% efficiency yet negligible EMI

Feature

Units

D160/80

D140/100

D40/200

Minimum supply voltage

VDC

11

20

Nominal supply voltage

VDC

65

85

170

Maximum supply voltage

VDC

75

95

195

Maximum continuous
Electrical power output

kW

10

11

7

Efficiency at rated power (at nominal conditions)

%

> 99

Maximum output voltage



Up to 96% of DC bus voltage

Amplitude sinusoidal/DC
continuous current

A

160

140

40

3-Phase Sinusoidal continuous
RMS current limit (Ic)

A

113

99

28

DC Motor (any two phase motor)

A

100

40

Current limit

A

Max Output current is guaranteed for THeat-Sink  <85°C

Feature

Units

All Types

Weight

g (oz)

~120.0 g (4.23 oz)

EtherCAT Version Dimension

mm (in)

47 x 69.5 x 29.7 mm (1.85" x 2.74" x 1.17")

CAN Version Dimension

mm (in)

47 x 69.5 x 26.9 mm (1.85" x 2.74" x 1.06")

Mounting method

Panel Based Mounting
