Gold Twitter

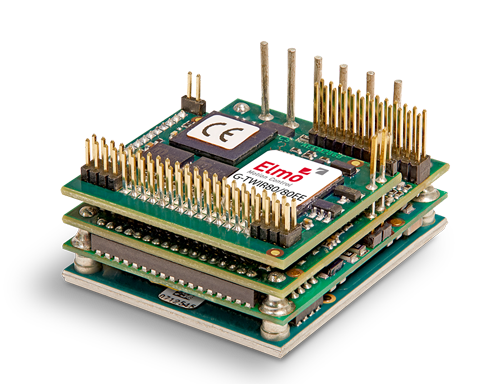

High Current NANO Servo Drive
80A/80VDC, 1-50A/ 100VDC ,3-15A/200VDC

Description

Gold Twitter- Tiny yet mighty

The NANO Servo Drive that provides over 5500 qualitative Watts

Gold Twitter Highlights:

  • High power density, over 5500 of “Qualitative” Watts
  • Ultra high current – up to 80A/80V, 50A/100V
  • Record-setting weight of only 18-22 grams (less than 1 ounce)
  • Ultra Small, Ultra Efficient, designed to be mounted on a PCB
  • Advanced networking by EtherCAT Or CANOpen
  • Wide Operating ranges:
    • “60VDC”,6VDC- 55VDC
    • “100VDC”, 10VDC- 95VDC
    • “200VDC”, 20VDC- 195VDC
  • Supports any feedback sensor in single, dual and gantry loop configurations
  • Incorporates Proprietary “Fast and Soft Switching Technology” resulting in >99% efficiency yet negligible EMI

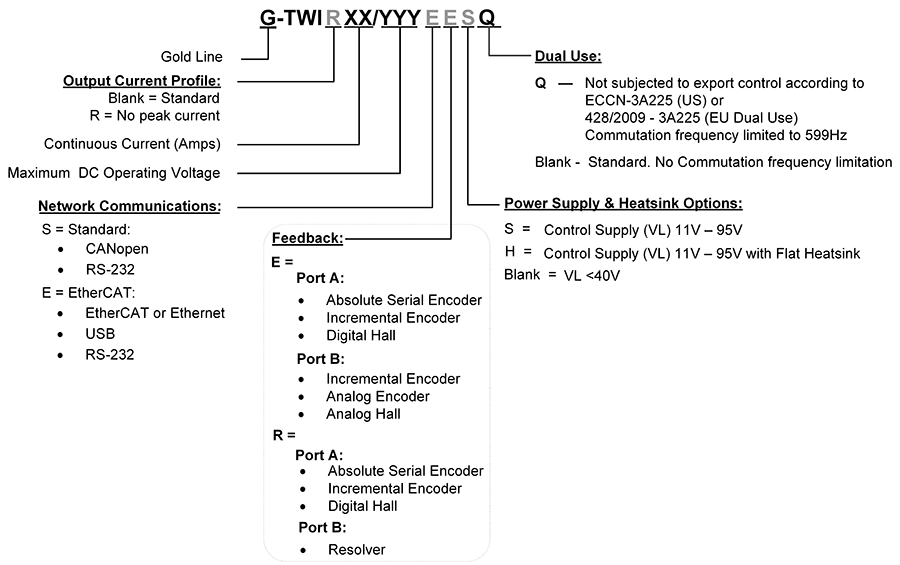

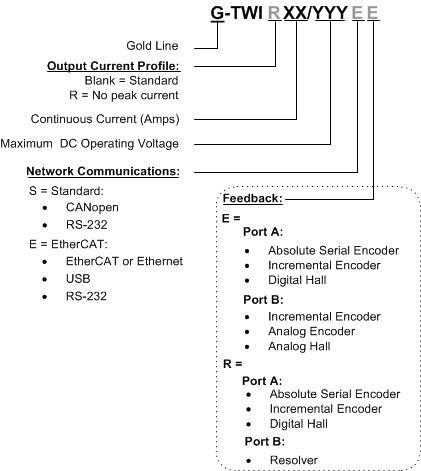

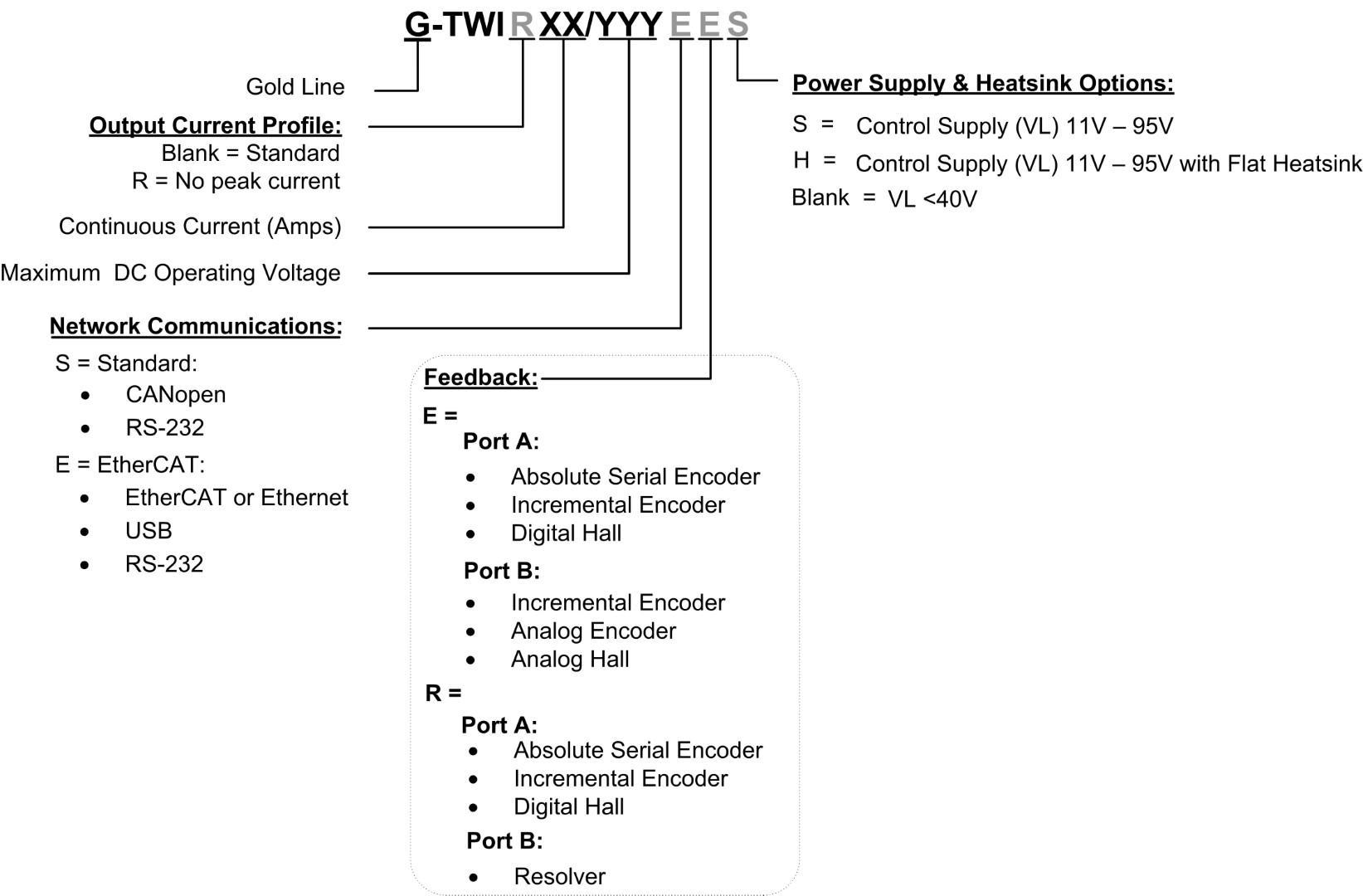

Feature

Units

30/60

1/100

3/100

6/100

10/100

15/100

25/100

Minimum supply voltage

VDC

8

10

Nominal supply voltage

VDC

48

85

Maximum supply voltage

VDC

55

95

Maximum continuous power output

W

1370

80

235

470

800

1125

2000

Efficiency at rated power (at nominal conditions)

%

> 99

Maximum output voltage



Up to 96% of DC bus voltage

Ic, Amplitude sinusoidal/DC continuous current

A

30

1

3

6

10

15

25

Sinusoidal continuous RMS current limit (Ic)

A

21

0.7

2.1

4.2

7.1

10

17.7

Peak current limit

A

2 x Ic

Feature

Units

3/200

6/200

10/200

Minimum supply voltage

VDC

20

Nominal supply voltage

VDC

170

Maximum supply voltage

VDC

195

Maximum continuous power output

W

485

975

1650

Efficiency at rated power (at nominal conditions)

%

> 99

Maximum output voltage



Up to 96% of DC bus voltage

Ic, Amplitude sinusoidal/DC continuous current

A

3

6

10

Sinusoidal continuous RMS current limit (Ic)

A

2.1

4.2

7.1

Peak current limit

A

2 x Ic

Feature

Units

R50/60

R80/80

R50/100

R70/100

R45/150

R15/200

Minimum supply voltage

VDC

8

10

10

10

12

20

Nominal supply voltage

VDC

48

65

85

85

115

170

Maximum supply voltage

VDC

55

75

95

95

135

195

Maximum continuous Electrical power output

kW

2.3

5

4.0

5.6

5

2.5

Efficiency at rated power (at nominal conditions)

%

> 99

Maximum output voltage



Up to 96% of DC bus voltage

Amplitude sinusoidal/DC continuous current

A

50

80

50

70

45

15

Sinusoidal continuous RMS current limit (Ic)

A

35.3

56.5

35.3

49.5

32

10.6

Feature

Units

All Types

Weight without Heatsink

g (oz)

EtherCAT Version: 22.2 g (0.78 oz)

CAN Version: 18.6 g (0.66 oz)

Weight with Heatsink

g (oz)

EtherCAT Version: 232.2 g (8.19 oz)

CAN Version: 228.6 g (8.06 oz)

EtherCAT Version Dimension
without Heatsink

mm (in)

35 x 30 x 14.4 mm (1.38" x 1.18" x 0.57")

CAN Version Dimension
without Heatsink

mm (in)

35 x 30 x 11.5 mm (1.38" x 1.18" x 0.45")

EtherCAT Version Dimension
with Heatsink

mm (in)

47 x 41.3 x 18.4 mm (1.85" x 1.63" x 0.72")

CAN Version Dimension
with Heatsink

mm (in)

47 x 41.3 x 15.5 mm (1.85" x 1.63" x 0.61")

Mounting method

PCB mount

IP

IP00
