Up to 25A/100V, 9A/200V
Up to 2kW of Continuous Power

Description

Next Generation Servo
Driving “Any Motor”

With Certified
Functional Safety

Up to 25A/100V, 9A/200V
Up to 2kW of Continuous Power

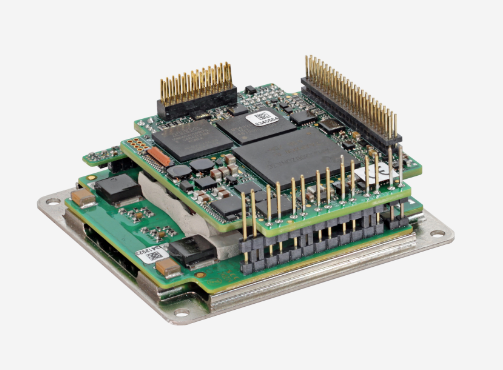

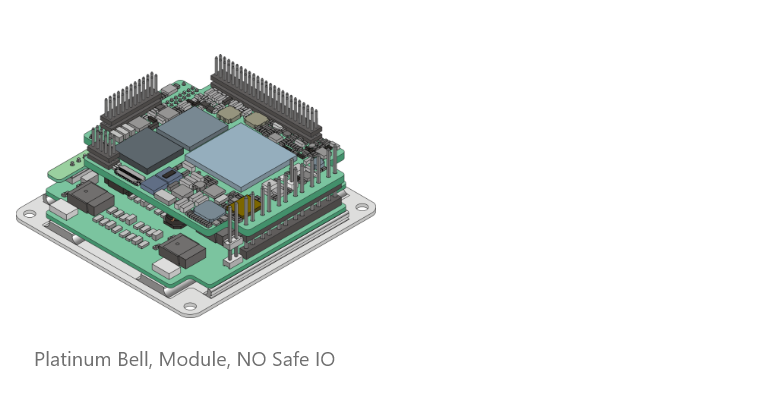

The Platinum Bell is a compact, digital servo drive, part of Elmo’s innovative Platinum series and designed to drive any motor. The Platinum Bell provides top servo performance, ultra-fast networking, increased processing power and rich feedback support.

With only 55 x 46 x 19.85 mm, the Platinum Bell servo drive can power any motor such as: two phases stepper (in closed or open loop), one brushless sinusoidal or trapezoidal servo motor, two DC or voice coil motors controlled independently by only one Platinum Bell and two single phase servo motors (linear or rotary) controlled independently as well by only one Platinum Bell.

The Platinum Bell is one of the world’s smallest servo technology to feature Functional Safety support, safety over EtherCAT (FSoE) and integrated Safe I/Os (optional).

The Platinum series was designed to meet the evolving needs of OEM designers for smarter, smaller, faster servo, with higher functionality and ease-of-use. Platinum drives aim to assist machine and robotic manufacturers in creating better machines through both superior motion-control and utmost safety.

Platinum Bell HighlightsNEW

  • Designed to drive any motor:
    • Two phases stepper (in closed or open loop)
    • Brushless sinusoidal or trapezoidal servo motor
    • Two DC or voice coil motors (controlled independently by one Platinum Bell)
    • Two single phase servo motors (controlled independently by one Platinum Bell)
  • Up to 25A/100V, 9A/200V
  • Ultra-Fast EtherCAT Networking
  • Functional Safety IEC 61800-5-2 (SIL-3, Cat4 PL-e) & FSoE
  • Integrated Safe I/Os (2 SIL3 inputs + 2 STO hardware inputs + SIL3 break outputs)

Platinum Series HighlightsNEW

  • Best-In-Class servo performance
  • World’s smallest servo technology to feature functional safety and safety over EtherCAT (FSoE)
  • Higher bandwidth, faster response, enhanced linearity and highest control resolutions
  • Ultra-efficient EtherCAT with cycling down to 100us, high synchronization with negligible jitters and near zero latency
  • Added feedback support: up to three simultaneously, or two absolute feedbacks
  • High processing power with large memory resources for better control, enhanced processing, and real time recording

Feature

Units

1/100

2.5/100

5/100

10/100

15/100

20/100

25/100

Minimum supply voltage

VDC

12

Nominal supply voltage

VDC

85

Maximum supply voltage

VDC

95

Maximum continuous power output

W

80

200

400

800

1200

1600

2000

Efficiency at rated power
(at nominal conditions)

%

> 99

Maximum output voltage



> 95% of DC bus voltage at f = 22 kHz

Control supply

VDC

12 to 60V for functional safety

(up to 6 VA inc. 5 V/2 x 200 mA for Encoder)

Amplitude sinusoidal/
DC continuous current

A

1.0

2.5

5

10

15

20

25

Sinusoidal continuous
RMS current limit (Ic)

A

0.7

1.8

3.5

7

10.6

14.1

17.5

Peak current limit

A

2 x Ic

Feature

Units

3/200

6/200

9/200

Minimum supply voltage

VDC

20

Nominal supply voltage

VDC

170

Maximum supply voltage

VDC

195

Maximum continuous power output

W

480

960

1450

Efficiency at rated power (at nominal conditions)

%

> 99

Maximum output voltage



> 95% of DC bus voltage at f = 22 kHz

Control supply

VDC

14 to 60V for functional safety

(up to 6 VA inc. 5 V/2 x 200 mA for Encoder)

Amplitude sinusoidal/DC continuous current

A

3

6

9

Sinusoidal continuous RMS current limit (Ic)

A

2.1

4.2

6.3

Peak current limit

A

2 x Ic

Feature

Units

All Types

Weight

g (oz)

~55 g (1.94 oz)

Weight with SafeIO Board

g (oz)

~65 g (2.29 oz)

Dimension

mm (in)

55 x 58.5 x 19.9 mm (2.2" x 2.30" x 0.78")

Dimension with SafeIO Board

mm (in)

55 x 58.5 x 23.2 mm (2.2" x 2.30" x 0.91")

Mounting method

PCB mount

Degrees of Protection

IP00

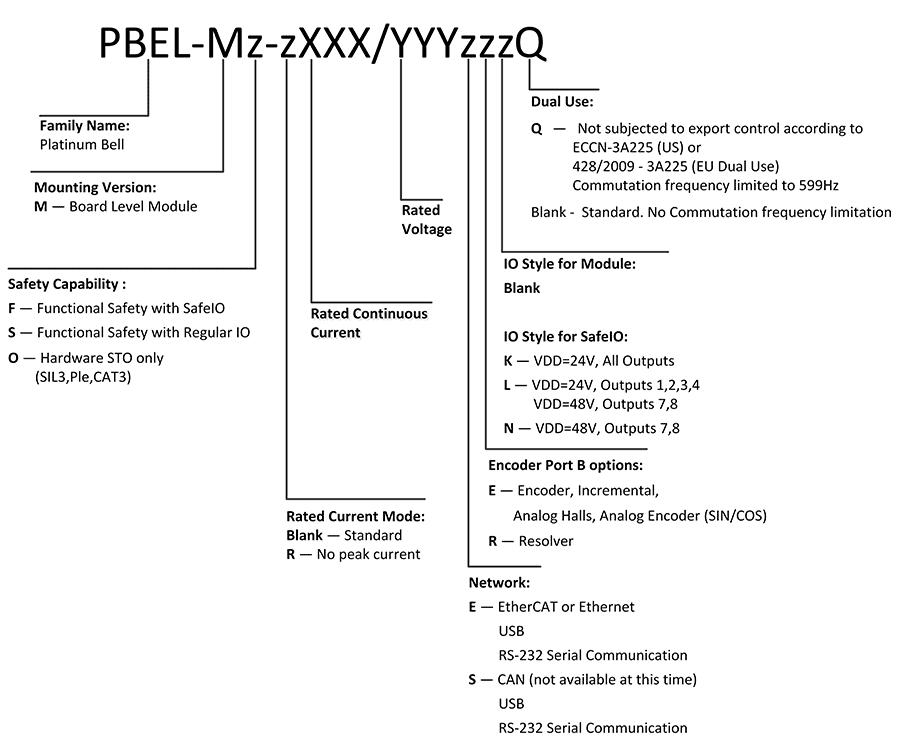

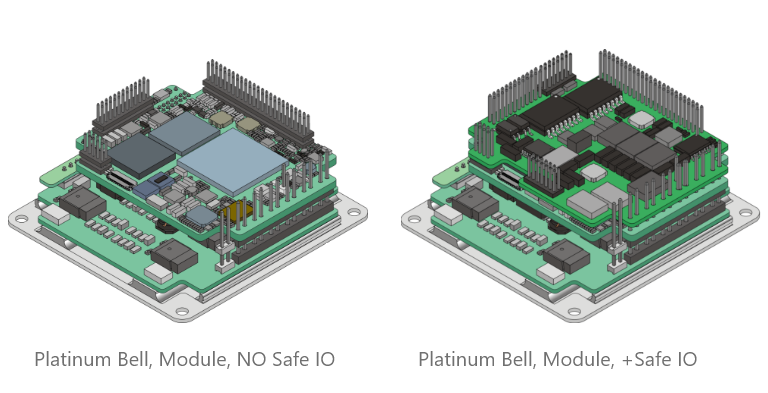

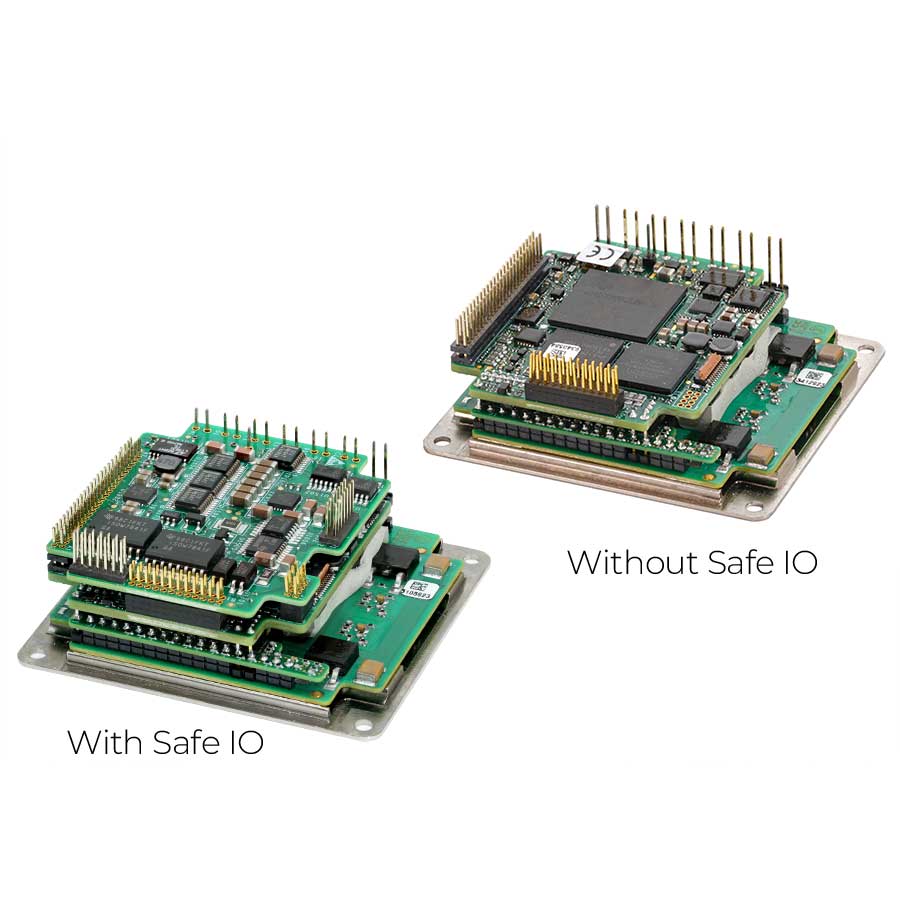

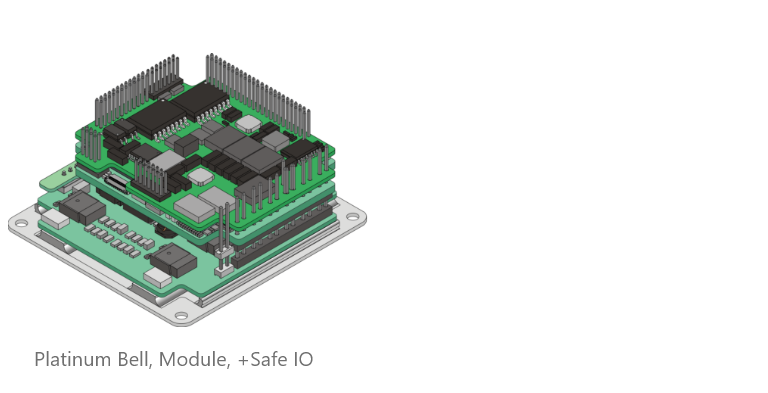

  • Option for integrated Safe I/Os: up to 6 digital inputs and 4 digital outputs (PLC SRC)
  • All Platinum line of servo drives feature functional safety (Learn more…)
  • In compliance with IEC 61800-5-2 (SIL-3) standards & safety over EtherCAT (FSoE)
  • Simple to implement safe-motion with rich functionality through Elmo Application 2.7 software (Learn more…)
  • Platinum Bell safety functions supported: STO, SLP, SLS, SS1, SS2, SOS, SLT & SBC
