Integrated Drives and Motors

100V

Description

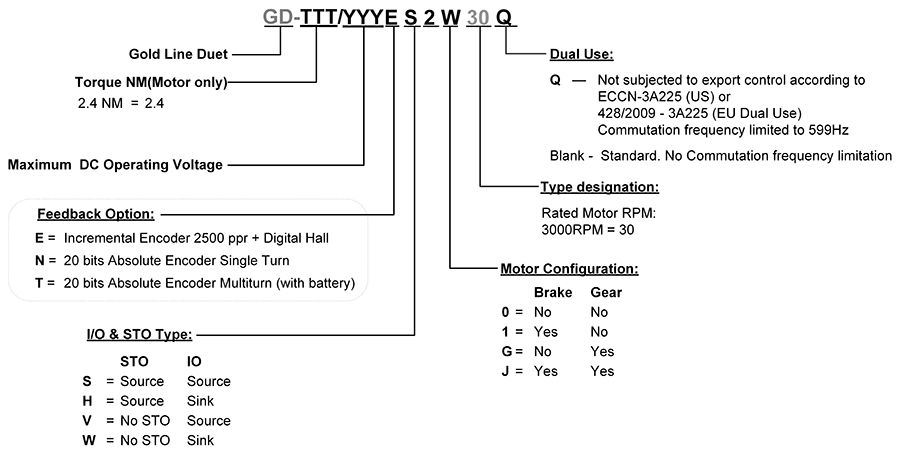

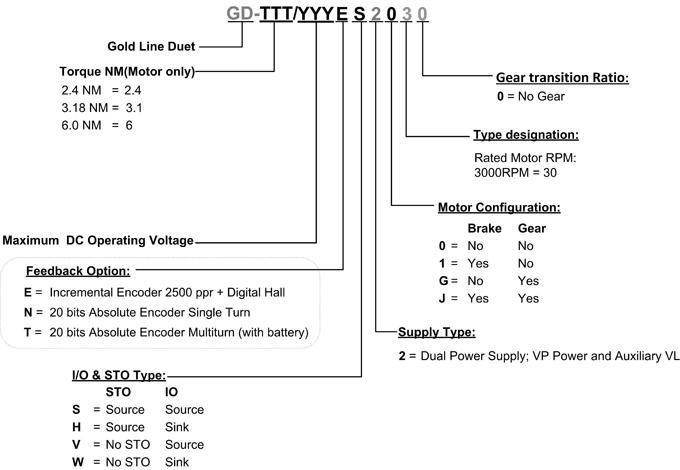

Gold Duet 80, 750W, 100VDC

Highly Compact Integrated Servo Drives and Motor, 100V

The Gold Duet 80 series of digital servo drives are highly resilient and designed to deliver the highest density of power and intelligence. The Gold Duet 80 delivers up to 750W of continuous power and 2250W peak power in a compact high quality package.

The Gold Duet includes the digital drive which is part of Elmo’s advanced Gold Line. The digital servo drives are designed for use with any type of sinusoidal and trapezoidal commutation, with vector control. The Gold Duet 80 can operate as a stand-alone device or as part of a multi-axis system in a distributed configuration on a real-time network.

The Elmo Application Studio (EASII) software tools enable users to quickly and simply configure the servo drive for optimal use with their motor. The Gold drive inside the Gold Duet 80, as part of the Gold Line, is fully programmable.

Gold Duet Highlights:

The Gold Duet is Elmo’s family of top performing integrated servo motors, equipped with built-in Gold series Elmo drives.

The newest versions added to the family are made possible with high performance 80 frame servo motors. The Gold series of digital servo drives in the Duets is highly resilient and designed to deliver the highest density of power and intelligence. The new Gold Duet delivers high power in a compact high quality package.

  • Rated Torque: Up to 2.39NM (750W))
  • Up to 7.17NM peak torque
  • Advanced EtherCAT networking

80 mm Flange 100V Electrical and Physical Data

Parameter



750W

100V

Motor

Rated Rotation Speed

rev/min

3000

Rated Torque

Nm

2.39

Maximum Peak Torque

Nm

7.17

Rotor Inertia

x10-4 kgm2

1.414

Rotor Inertia with brake

x10-4 kgm2

1.462

Electrical

Min DC bus for
Rated Speed @ 3XRated Torque

VDC

45

Minimum Supply Voltage

VDC

14

Maximum Supply Voltage

VDC

96

DC Bus Input Current @Vbus

At Rated Speed & Rated Torque

A/V

16A*/48V

9.5A/85V

VL , Control & Logic Supply

VDC

See Table in section Auxiliary
Supply Input Voltage (VL) .

Mechanical

Weight W/O Brake

Kg

TBD

Weight With brake

Kg

4.85

Dimensions W/O Brake

Mm (in)

272x119.2x86.2

(10.71x4.69x3.39)

Dimensions With Brake

Mm (in)

322x119.2x86.2

(12.68x4.69x3.39)

Encoders



Options



  • Single turn 20 bits Absolute Encoder, N option.

  • Multi-turn, 20 bits single turn + 16 bits multi-turn,
    including battery, T option

  • Quadrature 2500 ppr + commutation signals
    (Hall signals), E option

  • Other resolution on request

Structure



Totally enclosed, non-ventilated

Protection level



IP65
