4X 5000W Servo Drive & Motion-Controller
Up to 25A/100V, 10A/200V, P50A/100V, R35/200V

Description

New Era Of Servo Control
4-Axis Miniature “Ready to Use” Motion Control System

Composer2, Software in the Loop Powerful Drive’s Capability

4X 5000W Servo Drive & 4 Axis
Motion-Controller

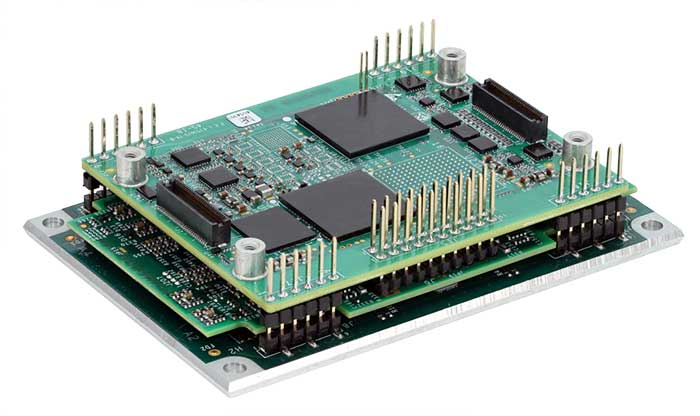

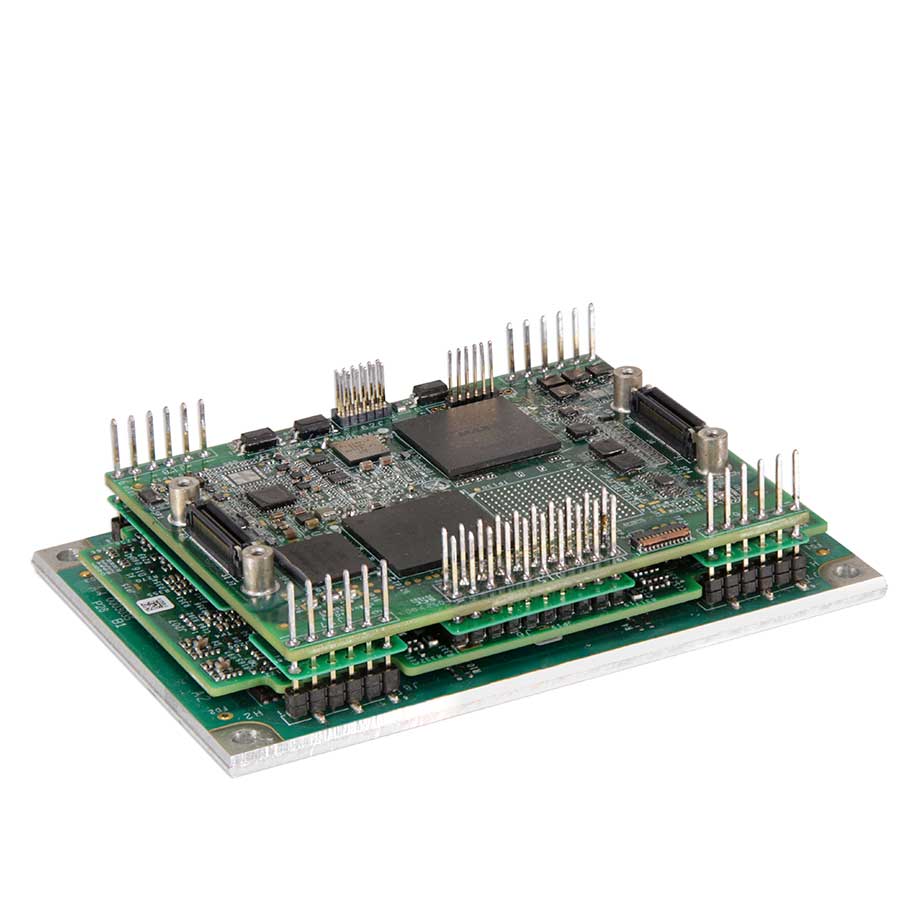

Platinum Quartet is an ultra-small 4-axis motion control system with advanced multi-axis control, integrated 4 x 5kW powerful servo drives, and advanced safety and networking functionality. The Platinum Quartet is a complete motion solution, which simplifies the connection to the application with an easy to connect interface.

The Platinum series was designed to meet the evolving needs of OEM designers for smarter, smaller, faster servo, with higher functionality and ease-of-use. Platinum drives aim to help machine and robotic manufacturers create better machines through both superior motion-control and utmost safety.

Platinum Quartet HighlightsNEW

  • 4X 5000W Servo Drive Intelligent Module
  • 4 Axis Motion-Controller
  • “Ready to Use” solution
  • High Precision Servo Control
  • Functional Safety: STO (SIL3, PLe,CAT3)
  • Rich I/O Support
  • Innovative Platinum line core
  • Fast EtherCAT Networking

Platinum Series HighlightsNEW

  • Best-In-Class servo performance
  • World’s smallest servo technology to feature advanced safety functionality
  • Higher bandwidth, faster response, enhanced linearity and highest control resolutions
  • Ultra-efficient EtherCAT with cycling down to 100us, high synchronization with negligible jitters and near zero latency
  • Added feedback support: up to three simultaneously, or two absolute feedbacks
  • High processing power with large memory resources for better control, enhanced processing, and real time recording

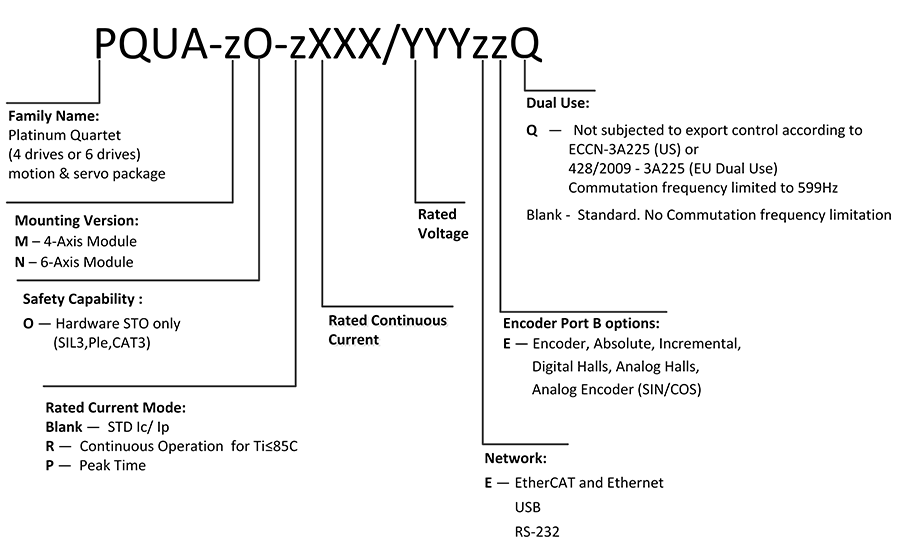

Feature

Units

1/100

3/100

6/100

10/100

15/100

25/100

P50/100

Minimum supply voltage

VDC

10

Nominal supply voltage

VDC

85

Maximum supply voltage

VDC

95

Maximum continuous power output

W

70

220

440

735

1100

2000

2000

Efficiency at rated power (at nominal conditions)

%

> 99

Maximum output voltage



Up to 96% of DC bus voltage

Amplitude sinusoidal/DC continuous current

A

1

3

6

10

15

25

25

Sinusoidal continuous RMS current limit (Ic)

A

0.7

2.1

4.2

7.1

10

17.7

17.7

Peak current limit

A

2 x Ic

Peak Time

Secs

Standard 3secs

Up to 30secs



Feature

Units

3/200

6/200

10/200

Minimum supply voltage

VDC

20

Nominal supply voltage

VDC

170

Maximum supply voltage

VDC

195

Maximum continuous power output

W

440

880

1450

Efficiency at rated power (at nominal conditions)

%

> 99

Maximum output voltage



Up to 96% of DC bus voltage

Amplitude sinusoidal/DC continuous current

A

1

6

10

Sinusoidal continuous RMS current limit (Ic)

A

2.1

4.2

7.1

Peak current limit

A

2 x Ic



Feature

Units

R15/200

R35/200

Minimum supply voltage

VDC

20

Nominal supply voltage

VDC

170

Maximum supply voltage

VDC

195

Maximum continuous power output

W

2200

5100

Efficiency at rated power (at nominal conditions)

%

> 99

Maximum output voltage



Up to 96% of DC bus voltage

Amplitude sinusoidal/DC continuous current

A

15

35

Sinusoidal continuous RMS current limit (Ic)

A

10.6

24.8

Peak current limit

A

Ic



Control Supply

FeatureUnitsUnitsDetails
Control supply input voltageVIsolated DC source: 14 to 95
24V Control supply
input power consumption
Without encoderW≤4
With 4 x 300mA encoders
(1.2A@5VE)
W≤11.5

Encoder Supply

FeatureDetails
5V supply5V ±5% Up to 1.2A

Feature

Units

All Types

Weight

g (oz.)

~140g (4.94 oz)

Dimension

mm (in)

95 x 65 x 22 mm(3.74” x 2.56” x 0.87”)

Mounting method

Pin Based Module

Complementary Products

Related Products

Additional information

Input Power

DC

Safety Level

STO

Feedback

ABSOLUTE, BISS, BOSCH, Digital Halls, ENDAT, Hyperface, INCREMENTAL, Other, PANASONIC, RESOLVER, SANYO DENKI, SensorLess, SIN/COS, SSI, TAMAGAWA

Communication

EtherCat, Ethernet, RS232, RS422, RS485, TCP-IP, UDP, USB

Enviroment

Industrial

# Axes

Four, Single, Two

Motor Type

DC BRUCH, DC BRUCHLESS, LINEAR, STEPPER, VOICE COIL

Form Factor

Pin Based
