up to 80A/80V, 70A/100V, 30A/200V

Description

Next Generation
World’s Smallest
“Ready to Use” Servo Drive

The “Plug & Play” Functional
Safety and FSoE Certified
Servo Drive with Safe I/Os
Delivers up to 5500 Watts

Up to 80A/80V, 70A/100V

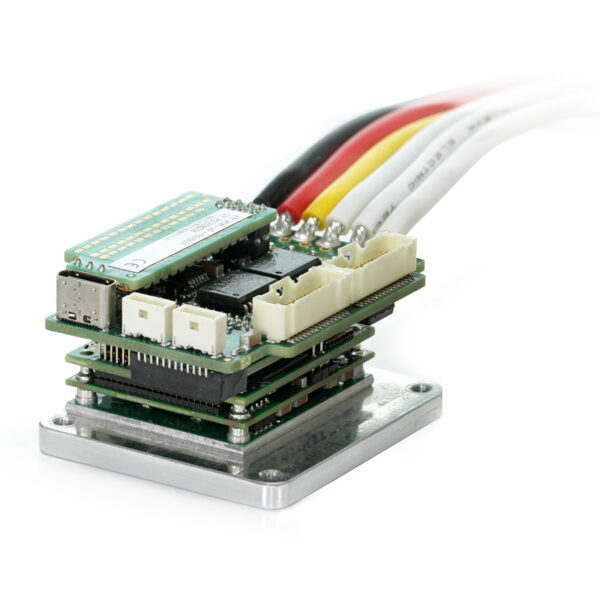

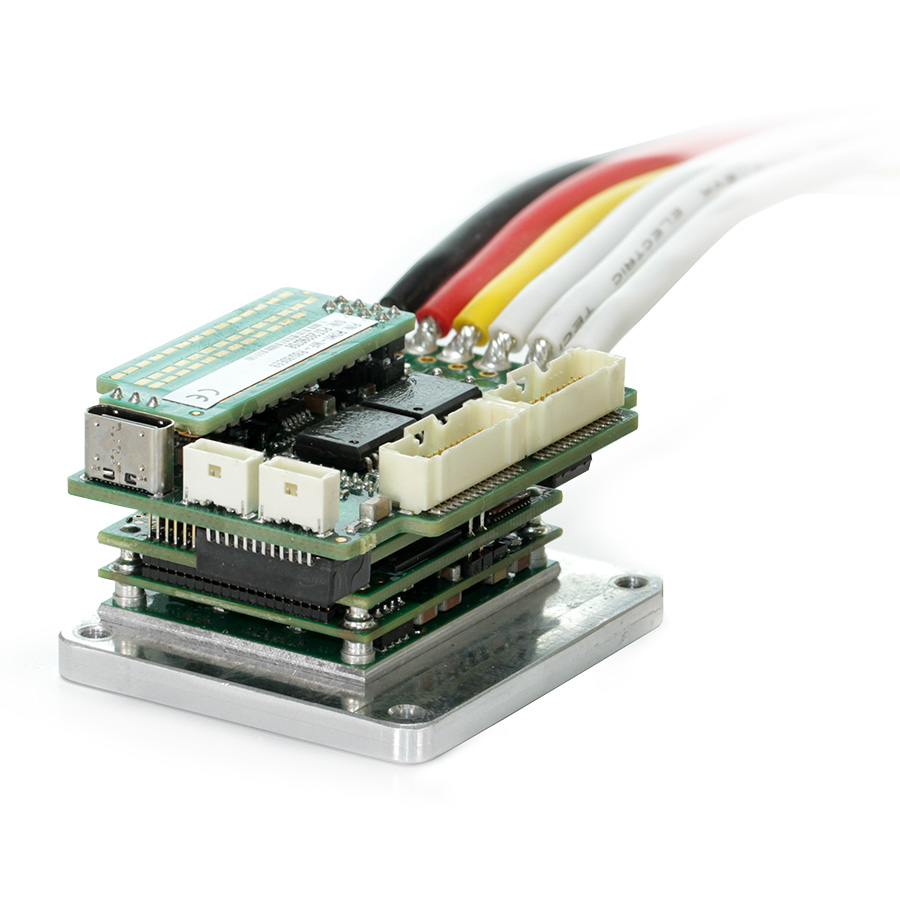

The Platinum Solo Twitter is the world’s smallest most powerful servo drive and part of Elmo’s Innovative Platinum series. The Platinum Solo Twitter is an integrated solution, which simplifies and speeds up the connection to the application with a “Fast & Easy” to connect interface. The Platinum Twitter provides top servo performance, ultra-fast networking, increased processing power and rich feedback support

With only 47.6 x 32.4 x 24.0 mm The Platinum Solo Twitter servo drive, is one of the world’s smallest servo technology to feature Functional Safety support, safety over EtherCAT (FSoE) and integrated Safe I/Os (optional).

The Platinum series was designed to meet the evolving needs of OEM designers for smarter, smaller, faster servo, with higher functionality and ease-of-use. Platinum drives aim to assist machine and robotic manufacturers in creating better machines through both superior motion-control and utmost safety.

Platinum Solo Twitter HighlightsNEW

  • World’s Smallest Most Powerful Servo Drive
  • Up to 80A/80V, 70A/100V
  • Qualitative Power up to 5500W
  • Innovative Platinum line core
  • Ultra-Fast EtherCAT Networking
  • Functional Safety IEC 61800-5-2 (SIL-3, Cat4 PL-e) & FSoE

Platinum Series HighlightsNEW

  • Best-In-Class servo performance
  • World’s smallest servo technology to feature functional safety and safety over EtherCAT (FSoE)
  • Higher bandwidth, faster response, enhanced linearity and highest control resolutions
  • Ultra-efficient EtherCAT with cycling down to 100us, high synchronization with negligible jitters and near zero latency
  • Added feedback support: up to three simultaneously, or two absolute feedbacks
  • High processing power with large memory resources for better control, enhanced processing, and real time recording

Feature

Units

1/100

3/100

6/100

10/100

15/100

25/100



Minimum supply voltage

VDC

10



Nominal supply voltage

VDC

85



Maximum supply voltage

VDC

95



Maximum continuous power output

W

80

235

470

800

1125

2000



Efficiency at rated power (at nominal conditions)

%

> 99

Maximum output voltage



Up to 96% of DC bus voltage

Ic, Amplitude sinusoidal/DC continuous current

A

1

3

6

10

15

25



Sinusoidal continuous RMS current limit (Ic)

A

0.7

2.1

4.2

7.1

10

17.7



Peak current limit

A

2 x Ic

Feature

Units

3/200

6/200

10/200

Minimum supply voltage

VDC

20

Nominal supply voltage

VDC

170

Maximum supply voltage

VDC

195

Maximum continuous power output

W

485

975

1650

Efficiency at rated power (at nominal conditions)

%

> 99

Maximum output voltage



Up to 96% of DC bus voltage

Ic, Amplitude sinusoidal/DC continuous current

A

3

6

10

Sinusoidal continuous RMS current limit (Ic)

A

2.1

4.2

7.1

Peak current limit

A

2 x Ic

Feature

Units

R80/80

R50/100

R70/100

R45/150

R15/200

Minimum supply voltage

VDC

10

10

10

12

20

Nominal supply voltage

VDC

65

85

85

115

170

Maximum supply voltage

VDC

75

95

95

135

195

Maximum continuous Electrical power output

kW

5

4

5.6

5

2.5

Efficiency at rated power (at nominal conditions)

%

> 99

Maximum output voltage



Up to 96% of DC bus voltage

Amplitude sinusoidal/DC continuous current

A

80

50

70

45

15

Sinusoidal continuous RMS current limit (Ic)

A

56.5

35.3

49.5

32

10.6

EtherCAT version with vertical power connector (No heatsink)

49.4 x 32.4 x 36.3 mm (1.95″ x 1.28″ x 1.43″)

EtherCAT version with horizontal power connector (No heatsink)

49.2 x 32.4 x 26.8 mm (1.94″ x 1.28″ x 1.06″)

EtherCAT version with wires to power supply and motor (No heatsink)

47.6 x 32.4 x 24.0 mm (1.87″ x 1.28″ x 0.95″)

EtherCAT version with wires to power supply and motor (with heatsink)

47.6 x 41.3 x 28.0 mm (1.87″ x 1.63″ x 1.10″)

EtherCAT version with horizontal power connector (with heatsink)

49.2 x 41.3 x 30.8 mm (1.94″ x 1.63″ x 1.21″)

EtherCAT version with vertical power connector (with heatsink)

49.4 x 41.3 x 40.3 mm (1.95″ x 1.63″ x 1.59″)

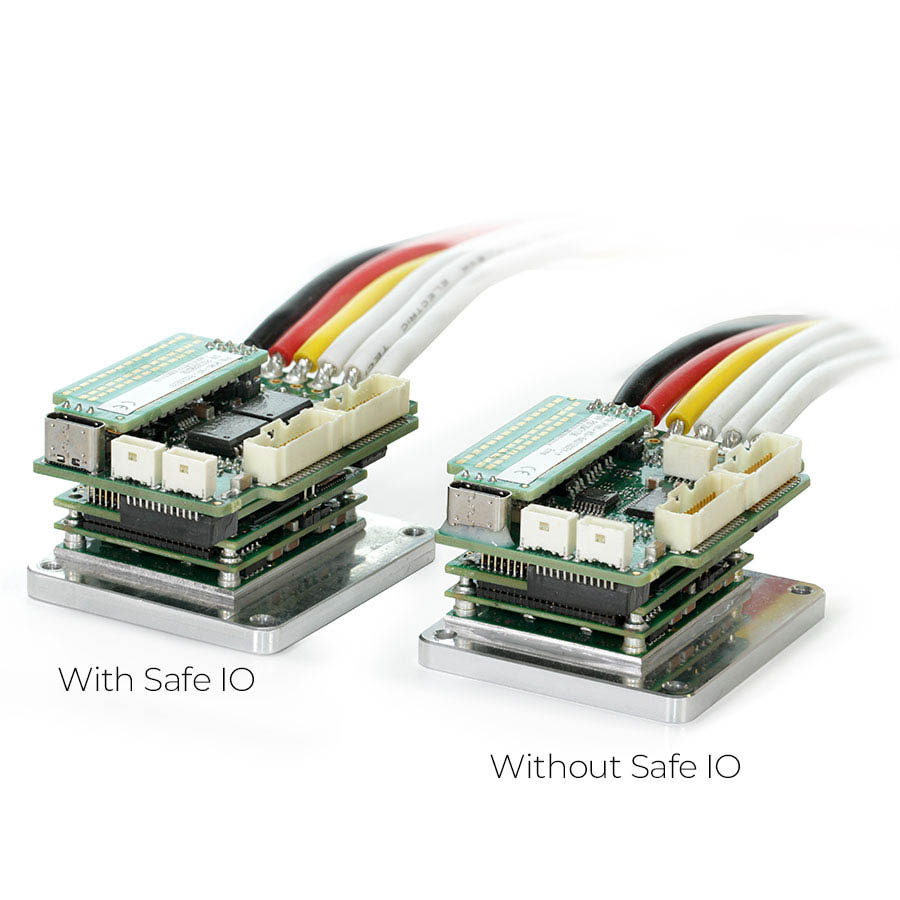

Safe IO –EtherCAT version with wires to power supply and motor (No heatsink)

47.4 x 37.9 x 24.8 mm (1.87″ x 1.49″ x 0.98″)

Safe IO –EtherCAT version with horizontal power connector (No heatsink)

47.4 x 37.9 x 26.8 mm (1.87″ x 1.49″ x 1.06″)

Safe IO –EtherCAT version with wires to power supply and motor (With heatsink)

47.4 x 41.3 x 29.0 mm (1.87″ x 1.63″ x 1.14″)

Safe IO –EtherCAT version with horizontal power connector (With heatsink)

47.4 x 37.9 x 27.4 mm (1.87″ x 1.49″ x 1.08″)

  • All Platinum line of servo drives feature functional safety (Learn more…)
  • In compliance with IEC 61800-5-2 (SIL-3) standards & safety over EtherCAT (FSoE)
  • Simple to implement safe-motion with rich functionality through Elmo Application 2.7 software (Learn more…)
  • Platinum Twitter safety functions supported: STO, SLP, SLS, SS1, SS2, SOS, SLT and SBC
