Platinum Twitter

You are here:
  1. Home
  2. Industrial Environment
  3. Servo Drivers
  4. Platinum Family
  5. Platinum Twitter

Up to 80A/80V, 70A/100V, 30A/200V

Category: Platinum Family Tags: Platinum Twitter PTWI
  • Description

Description

New Era Of Servo Control
World’s Smallest Most
Powerful Servo Drive

Certified Functional Safety
Composer2, Software in the Loop Powerful Drive’s Capability

Up to 80A/80V, 70A/100V

Specifications

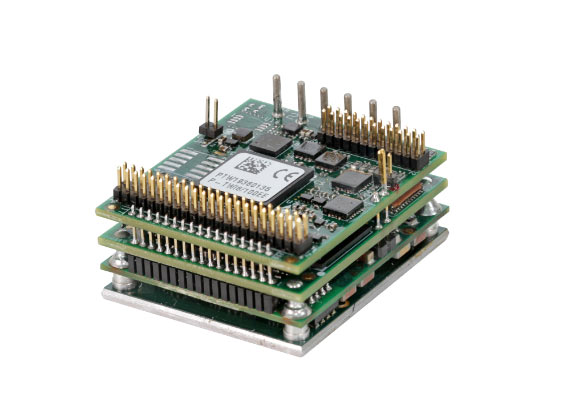

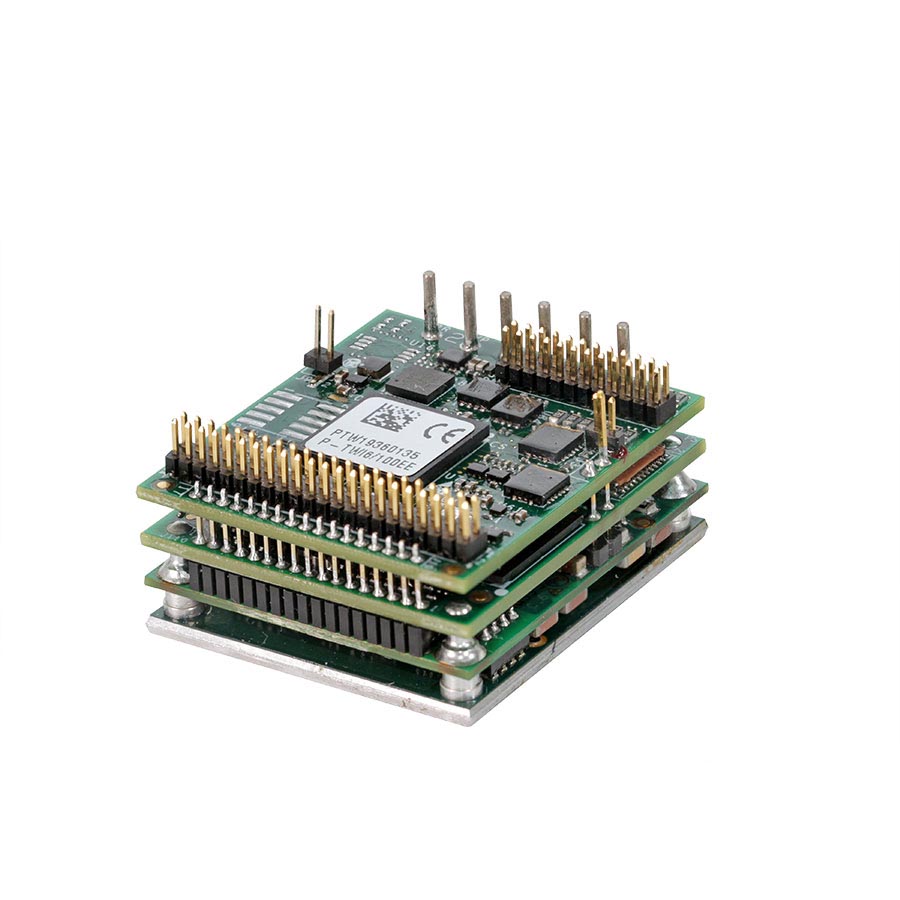

The Platinum Twitter is the world’s smallest most powerful servo drive and part of Elmo’s Innovative Platinum series. The Platinum Twitter provides top servo performance, ultra-fast networking, increased processing power and rich feedback support.

With only 35 x 30 x 15.3 mm, the Platinum Twitter servo drive is the world’s smallest servo technology to feature Functional Safety support and safety over EtherCAT (FSoE).

The Platinum series was designed to meet the evolving needs of OEM designers for smarter, smaller, faster servo, with higher functionality and ease-of-use. Platinum drives aim to assist machine and robotic manufacturers in creating better machines through both superior motion-control and utmost safety.

Platinum Twitter HighlightsNEW

  • World’s Smallest Most Powerful Servo Drive
  • Up to 80A/80V, 70A/100V
  • Qualitative Power up to 5500W
  • Innovative Platinum line core
  • Ultra-Fast EtherCAT Networking
  • Functional Safety IEC 61800-5-2 (SIL-3, Cat4 PL-e) & FSoE

Platinum Series HighlightsNEW

  • Best-In-Class servo performance
  • World’s smallest servo technology to feature functional safety and safety over EtherCAT (FSoE)
  • Higher bandwidth, faster response, enhanced linearity and highest control resolutions
  • Ultra-efficient EtherCAT with cycling down to 100us, high synchronization with negligible jitters and near zero latency
  • Added feedback support: up to three simultaneously, or two absolute feedbacks
  • High processing power with large memory resources for better control, enhanced processing, and real time recording
  • Electrical Specifications
  • Physical Specifications

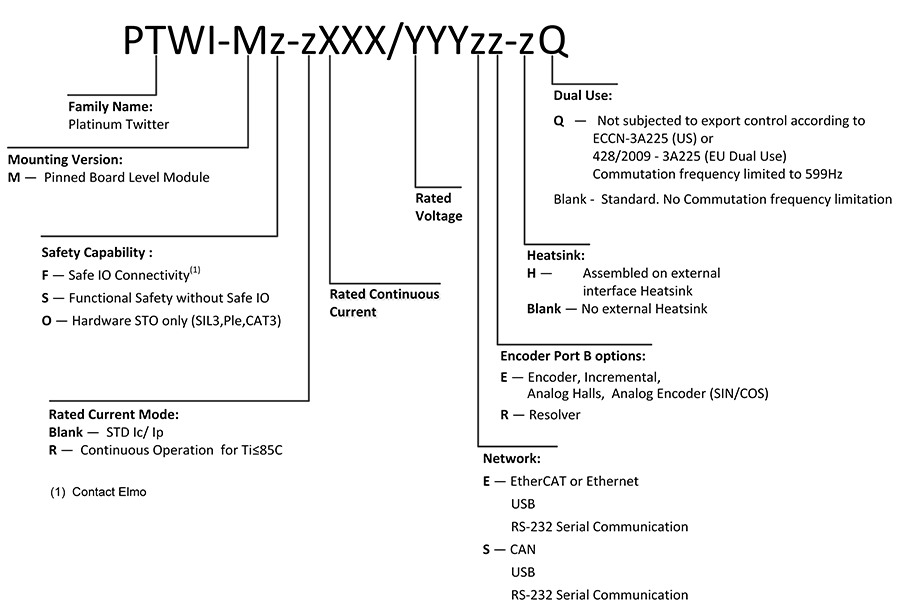

  • Catalog Number and Configurations
  • Safety

Feature

Units

1/100

3/100

6/100

10/100

15/100

25/100

Minimum supply voltage

VDC

10

Nominal supply voltage

VDC

85

Maximum supply voltage

VDC

95

Maximum continuous power output

W

80

235

470

800

1125

2000

Efficiency at rated power
(at nominal conditions)

%

> 99

Maximum output voltage



Up to 96% of DC bus voltage

Ic, Amplitude sinusoidal/DC
continuous current

A

1

3

6

10

15

25

Sinusoidal continuous
RMS current limit (Ic)

A

0.7

2.1

4.2

7.1

10

17.7

Peak current limit

A

2 x Ic

Feature

Units

3/200

6/200

10/200

Minimum supply voltage

VDC

20

Nominal supply voltage

VDC

170

Maximum supply voltage

VDC

195

Maximum continuous power output

W

485

975

1650

Efficiency at rated power (at nominal conditions)

%

> 99

Maximum output voltage



Up to 96% of DC bus voltage

Ic, Amplitude sinusoidal/DC continuous current

A

3

6

10

Sinusoidal continuous RMS current limit (Ic)

A

2.1

4.2

7.1

Peak current limit

A

2 x Ic

Feature

Units

R80/80

R50/100

R70/100

R45/150

R15/200

Minimum supply voltage

VDC

10

10

10

12

20

Nominal supply voltage

VDC

65

85

85

115

170

Maximum supply voltage

VDC

75

95

95

135

195

Maximum continuous Electrical power output

kW

5

4

5.6

5

2.5

Efficiency at rated power (at nominal conditions)

%

> 99

Maximum output voltage



Up to 96% of DC bus voltage

Amplitude sinusoidal/DC continuous current

A

80

50

70

45

15

Sinusoidal continuous RMS current limit (Ic)

A

56.5

35.3

49.5

32

10.6

Feature

Units

All Types

Weight without Heatsink

g (oz)

26.0 g (0.91 oz)

Weight with Heatsink

g (oz)

47.0 g (1.66 oz)

Dimension without Heatsink

mm (in)

35 x 30 x 15.3 mm (1.38" x 1.18" x 0.6")

Dimension with Heatsink

mm (in)

47 x 41.3 x 19.3 mm (1.85" x 1.63" x 0.76")

Mounting method

PCB mount

IP

IP00

  • All Platinum line of servo drives feature functional safety (Learn more…)
  • In compliance with IEC 61800-5-2 (SIL-3) standards & safety over EtherCAT (FSoE)
  • Simple to implement safe-motion with rich functionality through Elmo Application 2.7 software (Learn more…)

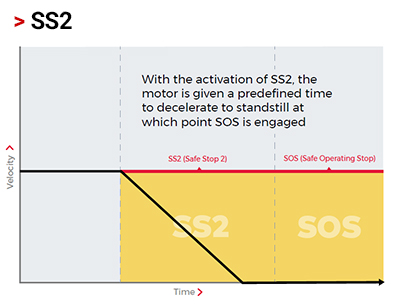

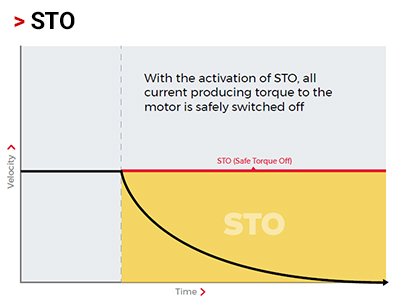

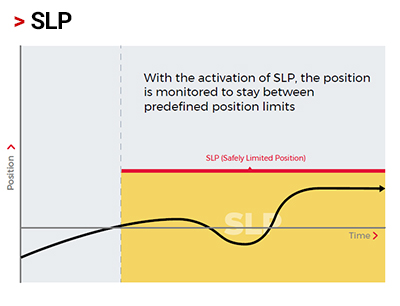

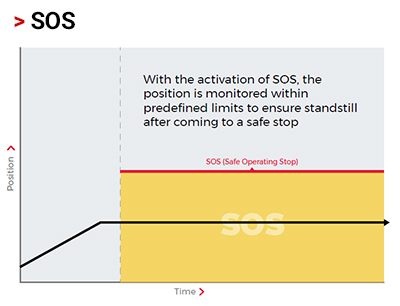

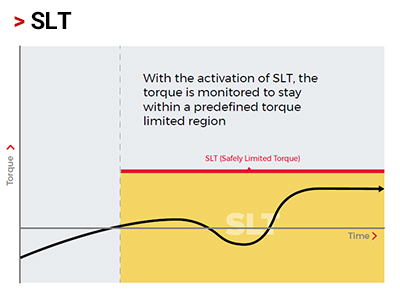

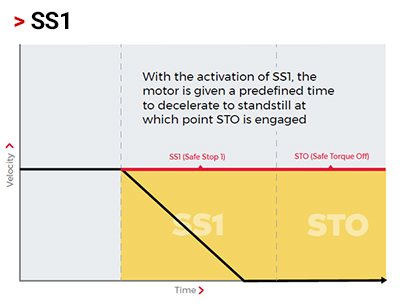

  • Platinum Twitter safety functions supported: STO, SLP, SLS, SS1, SS2, SOS and SLT
Platinum Safety Drive Manual

For More Information

Manuals and Installation Guides

  • Platinum Twitter Installation Guide_V.2.013_March 2022
  • Platinum Safety Drive Manual_V.2.005_March 2022
  • Platinum Drive Hardware Manual (STO Only)_V.1.003_March 2022

Presentation Deck NEW

  • Presentation: EAS II 2.8
  • Presentation: Maestro Release – Sep 2021
  • Presentation: Platinum Drive – Safety version II

Knowledge

  • COMPOSER 2, Drive Level SIL (Software in the loop)
  • Presentation: Platinum Products, Functional Safety & Implementation
  • Presentation: Smart Safety
  • AppNote: Functional Safety

Product Design Files

  • 3D IGES Format
  • 3D STEP Format
  • 3D STEP Format (with Heatsink)
  • 2D DXF Format

Standards

  • Standards Compliance
  • EtherCAT Compliance
  • CE Declaration – Drive System PLATINUM LINE
  • P-TWI Module MTBF

Safety Certification

  • Functional Safety Certification (1)
  • Functional Safety Certified products

Complementary Products

Read more

EASII

Elmo Application Studio II Software

Read more

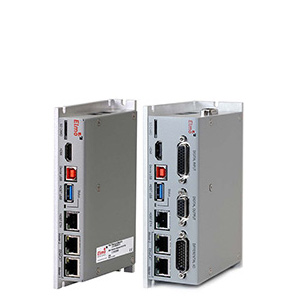

Platinum Maestro

High Precision Ethercat Muilti-Axis Motion Controller

Read more

Tambourine-20

The Tambourine (TAM-20) is Elmo’s compact, direct-to-mains power supply, designed for multiple servo drives.

Related Products

Read more

Platinum Bell

Up to 25A/100V, 9A/200V

NEW
Read more

Platinum Solo Bell

Stepper Servo drive Up to 25A/100V, 9A/200V
Functional Safety

NEW
Read more

Platinum Solo Quartet

4X 5000W Servo Drive & Motion-Controller

NEW
Read more

Platinum Solo Twitter

up to 80A/80V, 70A/100V, 30A/200V

NEW
Read more

Platinum Solo Whistle

Up to 25A/100V, 9A/200V

NEW
Read more

Platinum Whistle

Up to 25A/100V, 9A/200V

NEW

Related products

  • Platinum Harmonica
    Read more
  • Platinum Solo Twitter
    Read more
  • Platinum Solo Whistle
    Read more
  • EASII
  • Servo drives for harsh environment
  • Multi-Axis Motion Controllers
  • Servo Drive Platinum Family
  • Servo Drive Gold Family
  • Servo Drives
  • Industrial Robotics
  • Collaborative Robotics
  • Smart Warehouse
  • AGV
  • ROV
  • Dispensing
  • Resource Center
  • Frequently Asked Questions
  • Service Portal
  • General Terms and Conditions of Sale
Copyright ©2001 -2023 Elmo Motion Control Ltd.
  • Elmo
  • Privacy Policy
  • Terms of Use
footer
Go to Top
×

Industrial Environment

Multi Axis Controller

  • › Gold Maestro
  • › Platinum Maestro

Platinum Family

  • › Platinum Bell
    NEW
  • › Platinum Solo Bell
    NEW
  • › Platinum Whistle
    NEW
  • › Platinum Solo Whistle
    NEW
  • › Platinum Harmonica
    NEW
  • › Platinum Solo Triple Twitter
    NEW
  • › Platinum String Quartet
    NEW
  • › Platinum Cimbasso
    NEW
  • › Platinum Twitter
    NEW
  • › Platinum Solo Twitter
    NEW
  • › Platinum Solo Quartet
    NEW

Gold Family

  • › Gold Twitter
  • › Gold Solo Twitter
  • › Gold Double Twitter
  • › Gold Solo Double Twitter
  • › Gold Solo Triple Twitter
  • › Gold Whistle
  • › Gold Solo Whistle
  • › Gold DC Whistle
  • › Gold Duo
  • › Gold Bell
  • › Gold Solo Bell
  • › Gold DC Bell
  • › Gold Guitar
  • › Gold Solo Guitar
  • › Gold Cello
  • › Gold Mandolin
  • › Gold Solo Mandolin
  • › Gold Trombone
  • › Gold Solo Trombone
  • › Gold DC Trombone
  • › Gold Drum
  • › Gold Drum 360
  • › Gold Drum 550
  • › Gold Drum HV
  • › Gold Bassoon
  • › Gold Oboe
  • › Gold Tuba

SimplIQ Family

  • › Whistle
  • › Solo Whistle
  • › DC Whistle
  • › Guitar
  • › Solo Guitar
  • › Cello
  • › Trombone
  • › Solo Trombone
  • › DC Trombone
  • › Drum
  • › Drum HV
  • › Bassoon
  • › Tuba
  • › Cornet
  • › Harmonica

Integrated Drives and Motors

  • › Gold Duet 40
  • › Gold Duet 60
  • › Gold Duet 80, 750W, 100VDC
  • › Gold Duet 80, 750W & 1000W, 400VDC & 800VDC

Power Supplies

  • › Tambourine-100
  • › Tambourine-30
  • › Tambourine-20

Harsh Environment

Multi Axis Controller

  • › Gold Lion
  • › Platinum Lion

Platinum Family

  • › Platinum Hornet
    NEW
  • › Platinum Bee
    NEW
  • › Platinum Bee Quartet
    NEW
  • › Platinum Solo Triple Bee
    NEW

Gold Family

  • › Gold Bee
  • › Gold Solo Bee
  • › Gold Double Bee
  • › Gold Solo Double Bee
  • › Gold Eagle 360
  • › Gold Eagle 550
  • › Gold Eagle HV
  • › Gold Eagle
  • › Gold Solo Hawk
  • › Gold Hawk
  • › Gold Hornet
  • › Gold Solo Hornet
  • › Gold Jaguar
  • › Gold Panther
  • › Gold Tiger

SimpIIQ Family

  • › Bee
  • › Hawk
  • › Hornet
  • › Solo Hornet
  • › Panther
  • › Falcon
  • › Eagle HV
  • › Eagle

Power Supplies

  • › Elephant

Platinum Twitter - PART NUMBER Configuration

Step 1 of 10

10%
  • × ...
  • × {Field:1:value}
  • × {Field:1:value}{Field:26:value}
  • × {Field:1:value}{Field:26:value}{Field:106:value}

  • R current rating:
    The robust thermal design and the very high efficiency allow delivering continuously very high current limited only by the temperature of the heatsink (usually similar currents duration is limited < 3 Sec).

  • × {Field:1:value}{Field:26:value}{Field:106:value}
    {Field:8:value}
    {Field:12:value}
  • ◎ S - CAN (not available at this time), USB, RS-232)

  • × {Field:1:value}{Field:26:value}{Field:106:value}
    {Field:8:value}
    {Field:12:value}{Field:20:value}

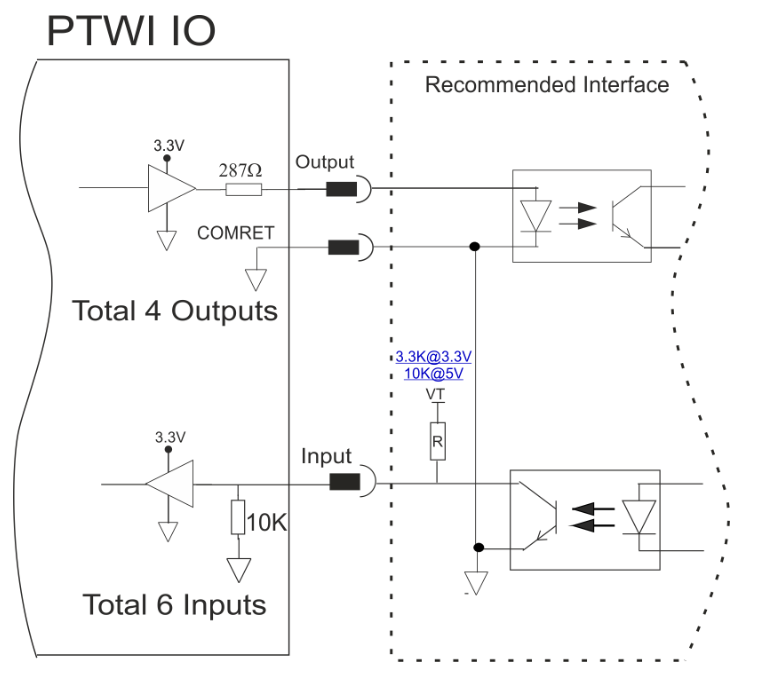

  • × {Field:1:value}{Field:26:value}{Field:106:value}
    {Field:8:value}
    {Field:12:value}{Field:20:value}{Field:21:value}
  • × {Field:1:value}{Field:26:value}{Field:106:value}
    {Field:8:value}
    {Field:12:value}{Field:20:value}{Field:21:value}

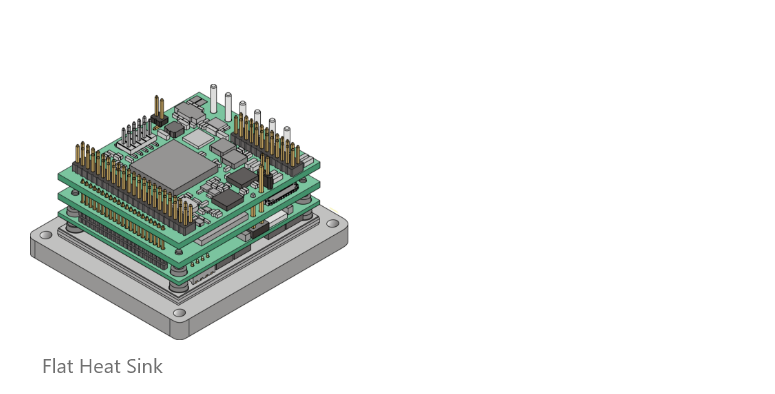

  • TWI assembled on external heatsink for ease top screws mounting and heat dissipation

  • Hidden
    With External Heat-Sink
  • Hidden
  • × {Field:1:value}{Field:26:value}{Field:106:value}
    {Field:8:value}
    {Field:12:value}{Field:20:value}{Field:21:value}{Field:67:value}
    {Field:65:value}
  • Q Suffix

    Dual Use:

    Q - Not subjected to export control according to ECCN-3A225 (US) or 428/2009 - 3A225 (EU Dual Use) Commutation frequency limited to 599Hz

    Blank - Standard. No Commutation frequency limitation

  • Hidden
  • Hidden
  • {Field:1:value}{Field:26:value}{Field:106:value}
    {Field:8:value}
    {Field:12:value}{Field:20:value}{Field:21:value}
    {Field:50:value}
    {Field:65:value}
    {Field:67:value}{Field:132:value}
    {Field:133:value}
  • Hidden
  • Enter your email to get a summarize report and product part number
  • By submitting this form, you confirm that you have reviewed and agree with our Terms of use and Privacy Policy (as may be in effect occasionally)

  • This field is for validation purposes and should be left unchanged.
