AC High Power Super Compact
Up to 40A/230VAC, 40A/480VAC

Description

Up to 25 kW of continuous power in a compact package

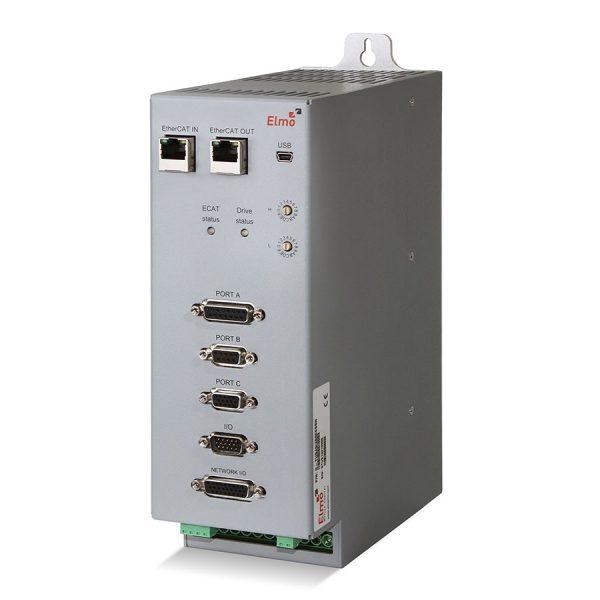

The Gold Tuba series of AC servo drives are highly resilient and designed to deliver the highest density of power and intelligence. The Gold Tuba delivers up to 25 kW of continuous power in a compact package.

The Gold Tuba series are part of Elmo’s advanced Gold Line. They operate from an AC power source in current, velocity, position and advanced position modes, in conjunction with a permanent-magnet synchronous brushless motor, DC brush motor, linear motor or voice coil. They are designed for use with any type of sinusoidal and trapezoidal commutation, with vector control. The Gold Tuba can operate as a stand-alone device or as part of a multi-axis system in a distributed configuration on a real-time network.

The drives are easily set up and tuned using Elmo Application Studio software tools. This Windows-based application enables users to quickly and simply configure the servo drive for optimal use with their motor.

Gold Tuba Highlights:

  • “Direct-to-mains” networking servo drive
  • Rectifies AC input voltage of up to 3x528VAC
  • Delivers up to 25kW of qualitative power
  • Gold Line core motion control technology
  • High Regeneration braking capability
  • Ultra-compact, highest power density
  • Highly efficient ≈99%
  • High servo performance, wide current, velocity, position bandwidth
  • Real-time deterministic network communications: EtherCAT, CANopen
  • Host communication: USB, Ethernet
  • Supports a wide variety of feedback sensors in single, dual and gantry loop configurations
  • Advanced tuning, filtering and gain scheduling options for enhanced dynamic performance
  • Vector control sinusoidal commutation
  • Easy to set up and tune with Elmo Application Studio software tools
  • Windows-based application enables users to quickly and simply configure the servo drive for optimal use with their motor
  • Complies to safety and EMC STD: IEC61800, UL508c, UL60950, EC61800-5-2

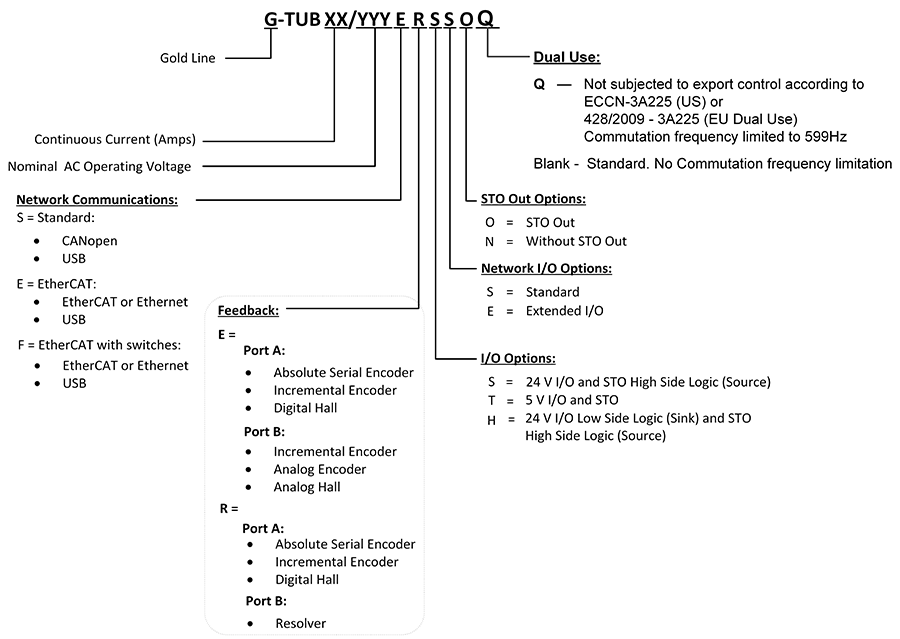

Feature

Units

30/230

40/230

30/480

40/480

45/480

Minimum supply voltage

VAC

DC-500 Hz

1 x 60

or

3 x 60

3 x 60

3 x 140

Nominal supply voltage

VAC

DC-500 Hz

1 x 230

or

3 x 230

3 x 230

3 x 400

3x 480

Maximum supply voltage

VAC
DC-500 Hz

1 x 270

or

3 x 270

3 x 270

3 x 528

Maximum continuous
power output

kW

9.5

13

18.5

25

28

Efficiency at rated power (at nominal conditions)

%

> 98

Auxiliary supply
voltage range

VDC

24 VDC ±10%

Auxiliary supply power

VA

20

35

20

35

Continuous current limit (Ic)
Amplitude sinusoidal/DC
trapezoidal commutation

A

30

40

30

40

45

Continuous RMS sinusoidal
commutation current limit (Ic)

A

21

28

21

28

32

Peak Current

A

60

80

60

80

90

Built In Shunt (peak Power)

kW

5.9

11

Note on current ratings: The current ratings of the Gold Tuba are given in units of DC amperes (ratings that are used for trapezoidal commutation or DC motors). The RMS (sinusoidal commutation) value is the DC value divided by 1.41.

Feature

Units

All Types

Weight

g (oz)

3.25 Kg (114.64 oz)

Dimension

mm (in)

241 x 86.1 x 180.1 (9.45" x 3.39" x 7.09")

Mounting method

Wall Mounted
