Up to 15A/200V

Description

New Era Of Servo Control
Ultra Small Servo Drive

Certified Functional Safety
Composer2, Software in the Loop Powerful Drive’s Capability

Designed, qualified, verified, manufactured and tested to withstand Extreme Environments

Up to 70A/100V, 80A/80V, 15A/200V
Up to 5.6kW of continuous power

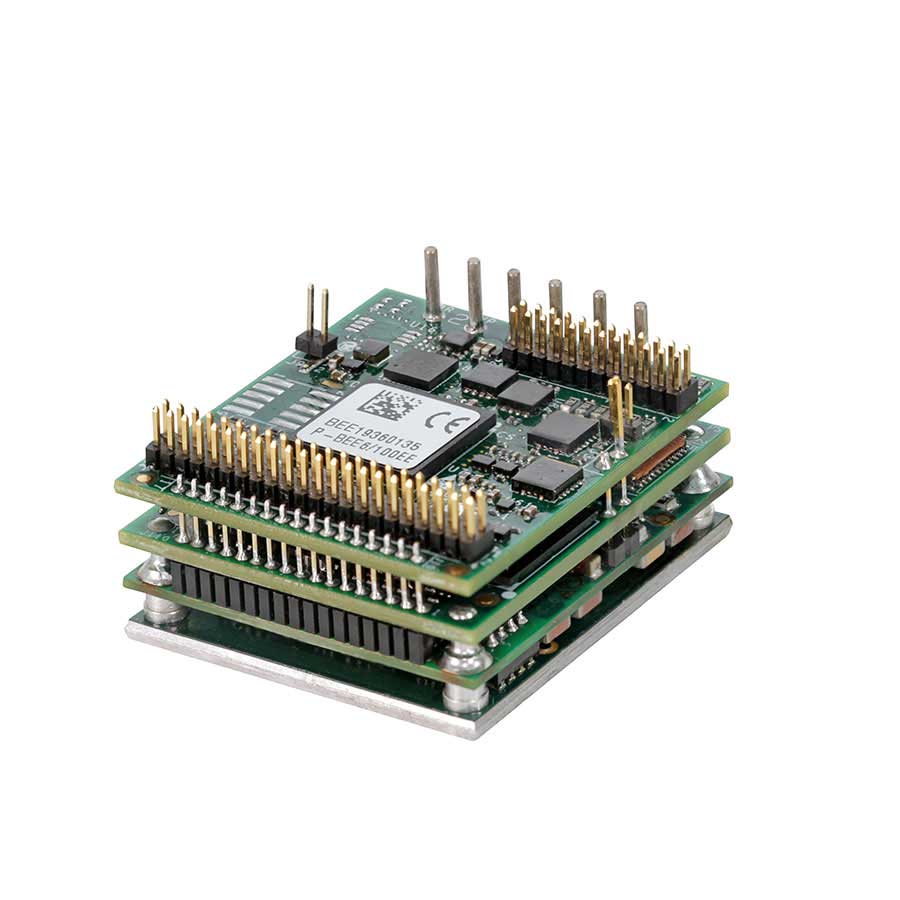

The Platinum Bee is an advanced high power density servo drive, delivering up to 5.6 kW power in a 16.4 cm3 (1.0 in³) compact package (35 x 30 x 15.6 mm or 1.38″ x 1.18″ x 0.6″).

This advanced, high power density servo drive provides top performance, advanced networking and built-in safety, as well as a fully featured motion controller and local intelligence.

The Platinum series was designed to meet the evolving needs of OEM designers for smarter, smaller, faster servo, with higher functionality and ease-of-use. Platinum drives aim to assist machine and robotic manufacturers in creating better machines through both superior motion-control and utmost safety.

Platinum Bee HighlightsNEW

  • Ready for the Extreme, -40 °C to +70 °C, Vibrations up to 14 GRMS
  • Miniature powerful servo drive Up to 15A/200V
  • Up to 5.6kW of continuous power
  • Ultra-Fast EtherCAT Networking
  • Functional Safety IEC 61800-5-2 (SIL-3, Cat4 PL-e) & FSoE
  • Integrated Safe I/Os (2 SIL3 inputs + 2 STO hardware inputs + SIL3 break outputs + SIL3 output)

Platinum Series HighlightsNEW

  • Best-In-Class servo performance
  • World’s smallest servo technology to feature functional safety and safety over EtherCAT (FSoE)
  • Higher bandwidth, faster response, enhanced linearity and highest control resolutions
  • Ultra-efficient EtherCAT with cycling down to 100us, high synchronization with negligible jitters and near zero latency
  • Added feedback support: up to three simultaneously, or two absolute feedbacks
  • High processing power with large memory resources for better control, enhanced processing, and real time recording

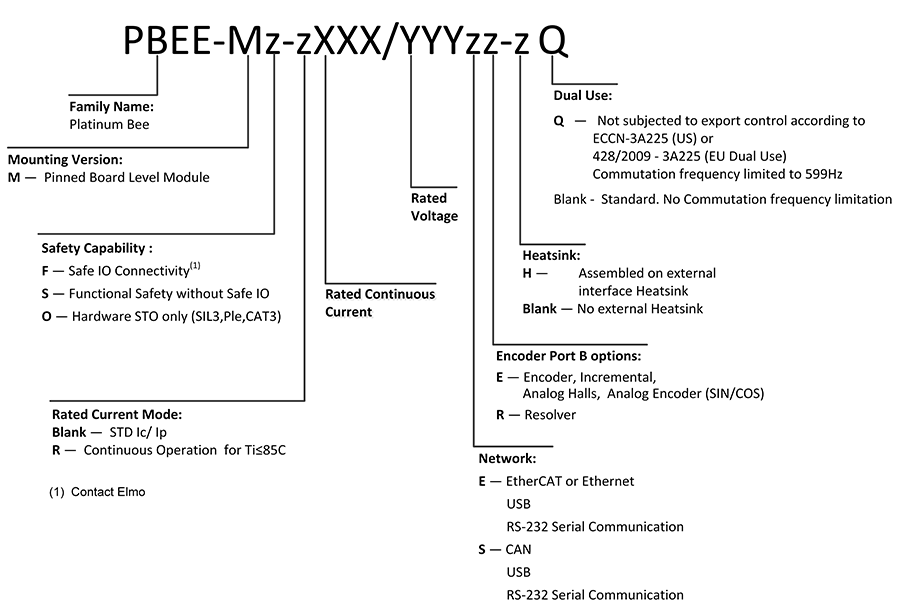

Feature

Units

1/100

3/100

6/100

10/100

15/100

25/100

Minimum supply voltage

VDC

10

Nominal supply voltage

VDC

85

Maximum supply voltage

VDC

95

Maximum continuous power output

W

80

235

470

800

1125

2000

Efficiency at rated power
(at nominal conditions)

%

> 99

Maximum output voltage



Up to 96% of DC bus voltage

Ic, Amplitude sinusoidal/DC
continuous current

A

1

3

6

10

15

25

Sinusoidal continuous
RMS current limit (Ic)

A

0.7

2.1

4.2

7.1

10

17.7

Peak current limit

A

2 x Ic

Feature

Units

3/200

6/200

10/200

Minimum supply voltage

VDC

20

Nominal supply voltage

VDC

170

Maximum supply voltage

VDC

195

Maximum continuous power output

W

485

975

1650

Efficiency at rated power (at nominal conditions)

%

> 99

Maximum output voltage



Up to 96% of DC bus voltage

Ic, Amplitude sinusoidal/DC continuous current

A

3

6

10

Sinusoidal continuous RMS current limit (Ic)

A

2.1

4.2

7.1

Peak current limit

A

2 x Ic

Feature

Units

R80/80

R50/100

R70/100

R45/150

R15/200

Minimum supply voltage

VDC

10

10

10

12

20

Nominal supply voltage

VDC

65

85

85

115

170

Maximum supply voltage

VDC

75

95

95

135

195

Maximum continuous Electrical power output

kW

5

4

5.6

5

2.5

Efficiency at rated power (at nominal conditions)

%

> 99

Maximum output voltage



Up to 96% of DC bus voltage

Amplitude sinusoidal/DC continuous current

A

80

50

70

45

15

Sinusoidal continuous RMS current limit (Ic)

A

56.5

35.3

49.5

32

10.6

Feature

Units

All Types

Weight without Heatsink

g (oz)

26.0 g (0.91 oz)

Weight with Heatsink

g (oz)

47.0 g (1.66 oz)

Dimension without Heatsink

mm (in)

35 x 30 x 15.3 mm (1.38" x 1.18" x 0.6")

Dimension with Heatsink

mm (in)

47 x 41.3 x 19.3 mm (1.85" x 1.63" x 0.76")

Mounting method

PCB mount

Degrees of Protection

IP00

  • All Platinum line of servo drives feature functional safety (Learn more…)
  • In compliance with IEC 61800-5-2 (SIL-3) standards & safety over EtherCAT (FSoE)
  • Simple to implement safe-motion with rich functionality through Elmo Application 2.7 software (Learn more…)
  • Platinum Bee safety functions supported: STO, SLP, SLS, SS1, SS2, SOS and SLT
