Description
New Era In Servo Control
Composer2, Software in the Loop Powerful Drive’s Capability
Ultra Compact, A Complete 4 Axis,
Motion Control System, 4 X 16A Continuous, 400VDC

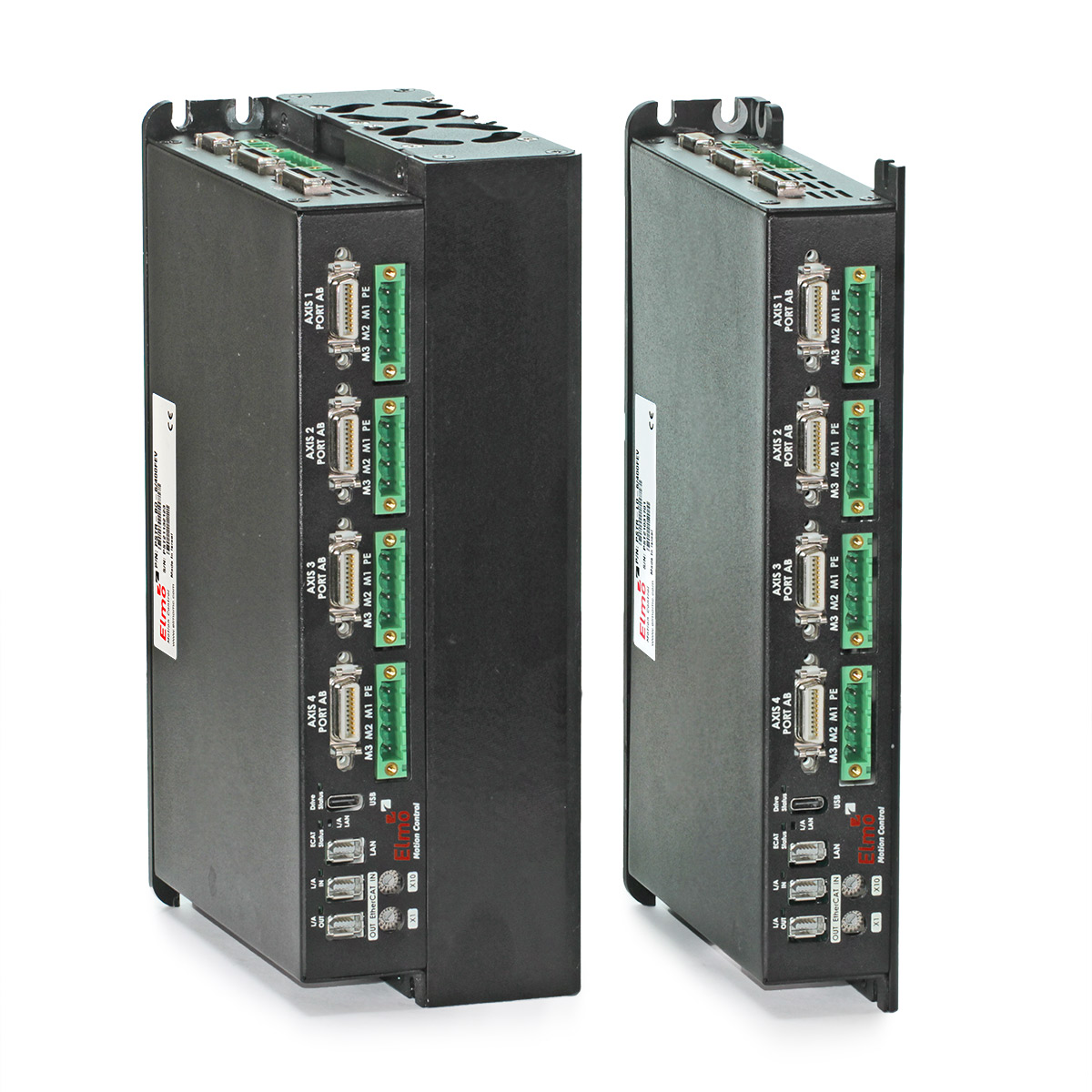

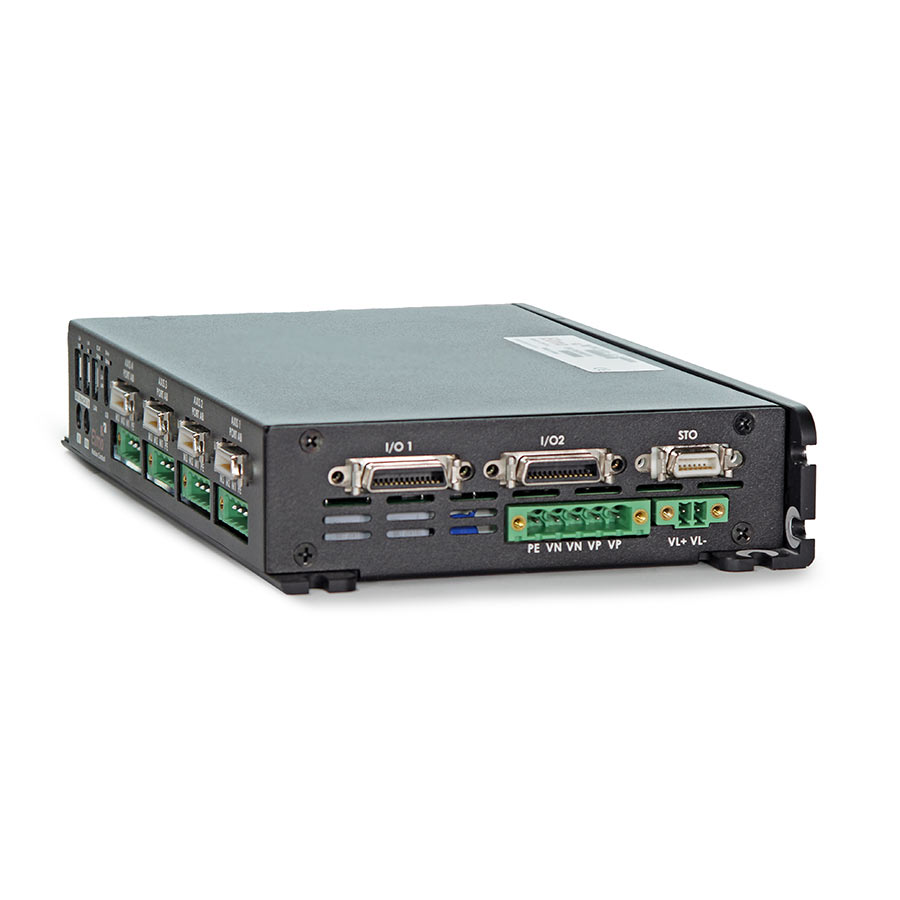

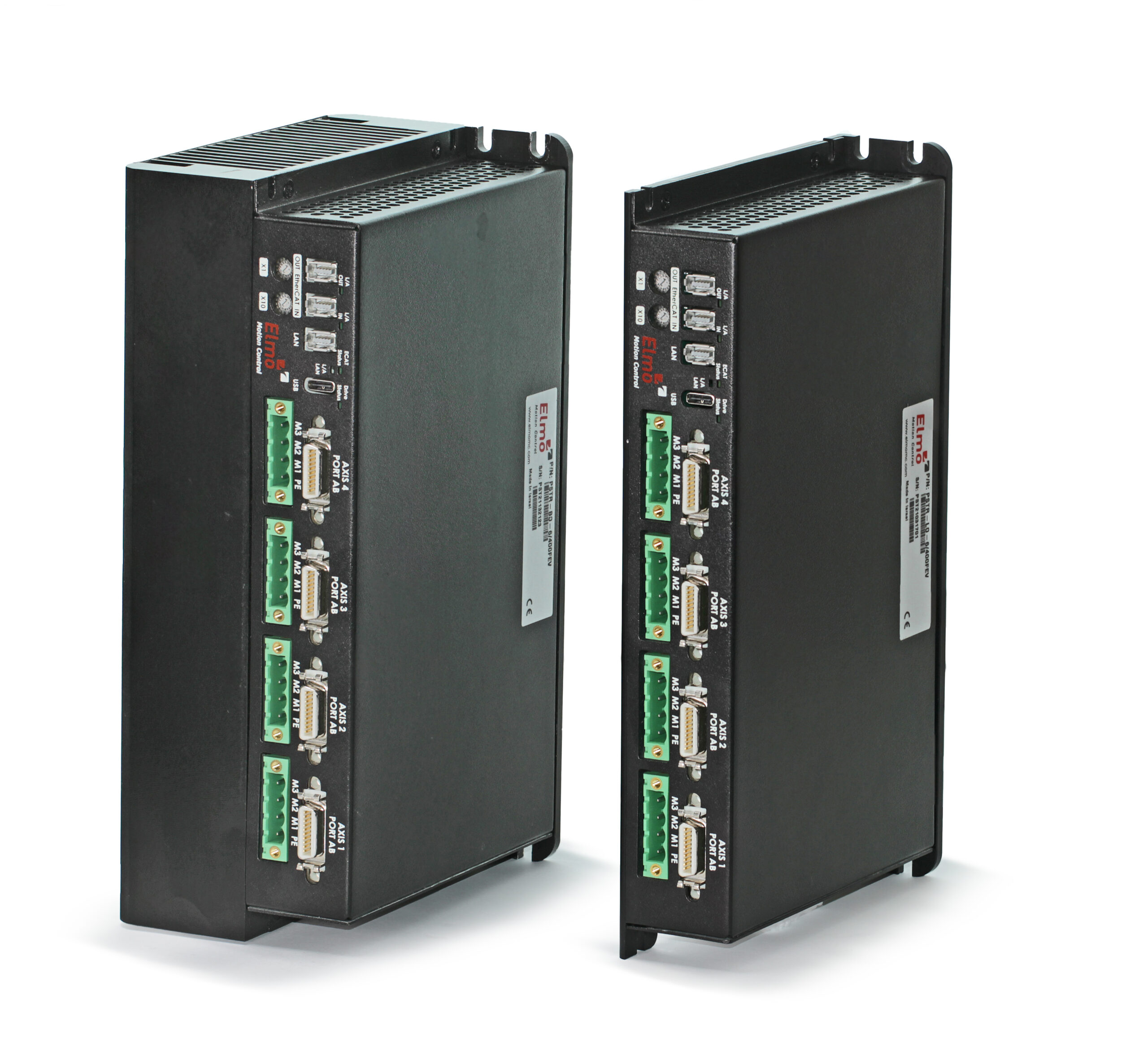

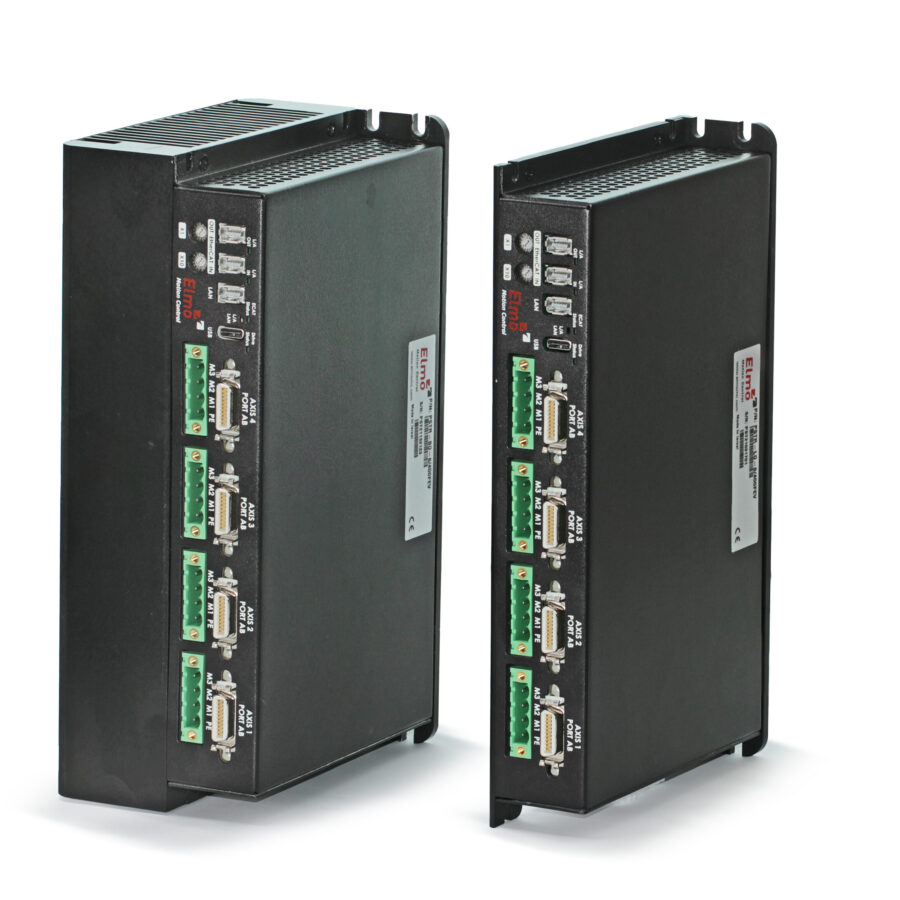

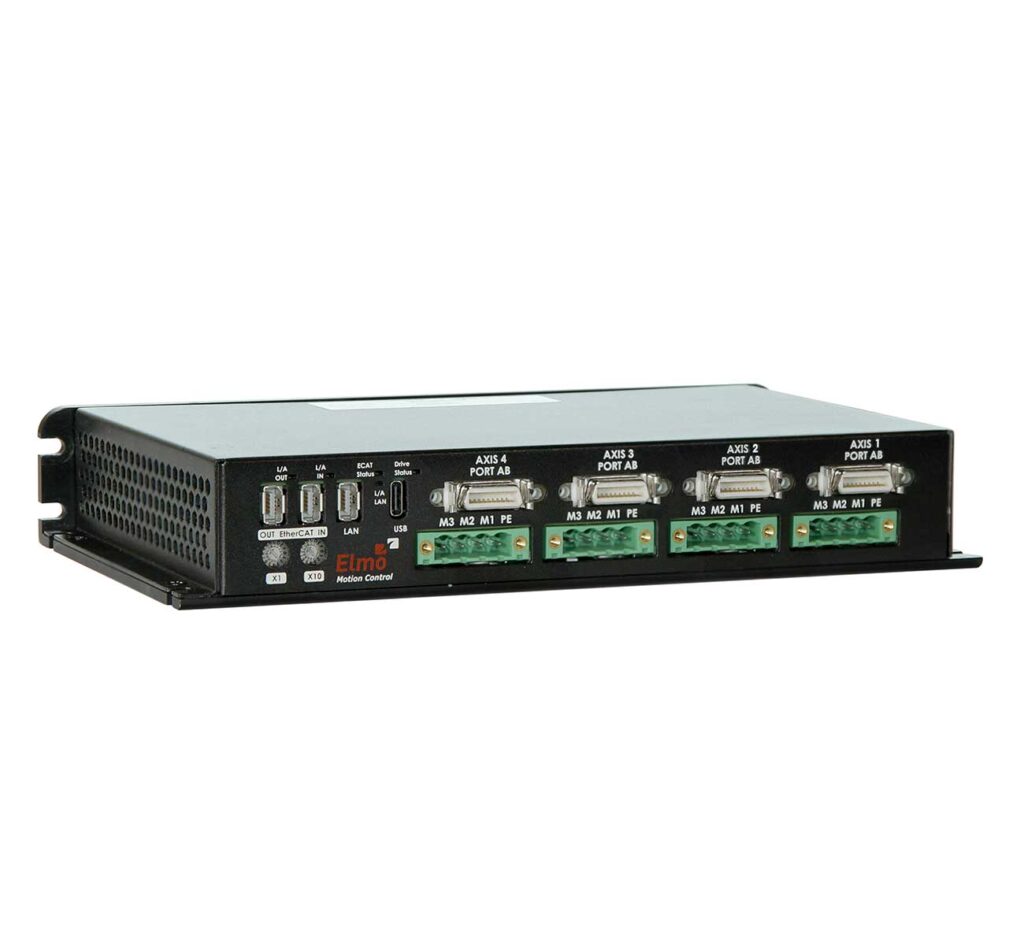

The Platinum String Quad (Quartet) is an integrated solution delivering up to 5500W per axis and 10400W in total of continuous power in a compact package (224 x 133 x 80 mm (8.82″ x 5.24″ x 3.15″) for the Fins+Fan model, and 224 x 133 x 38.3 mm (8.82″ x 5.24″ x 1.51″) for the L-shape model).
This advanced, high power density servo drive provides top performance, functional safety, advanced networking, as well as a fully featured motion controller and local intelligence.
The Platinum series was designed to meet the evolving needs of OEM designers for smarter, smaller, faster servo, with higher functionality and ease-of-use. Platinum drives aim to assist machine and robot manufacturers in creating better machines through both superior motion-control and utmost safety.
Platinum String Quartet HighlightsNEW
- A compact, ready to use advanced multi-axis motion controller + 4 smart servo drives
- Most powerful, 16A ( 30A peak) each drive at 400VDC
- Advanced multi-axis control capabilities
- Fast EtherCAT Networking
- Functional Safety: STO (SIL3, PLe,CAT3)
Platinum Series HighlightsNEW
- Best-In-Class servo performance
- Higher bandwidth, faster response, enhanced linearity and highest control resolutions
- Ultra-efficient EtherCAT with cycling down to 100us, high synchronization with negligible jitters and near zero latency
- Added feedback support: up to three simultaneously, or two absolute feedbacks
- Composer2, Proprietary Drive Level SIL( Software In The Loop), allows running customer’s control algorithms within the drive’s real-time
- High processing power with large memory resources for better control, enhanced processing, and real time recording

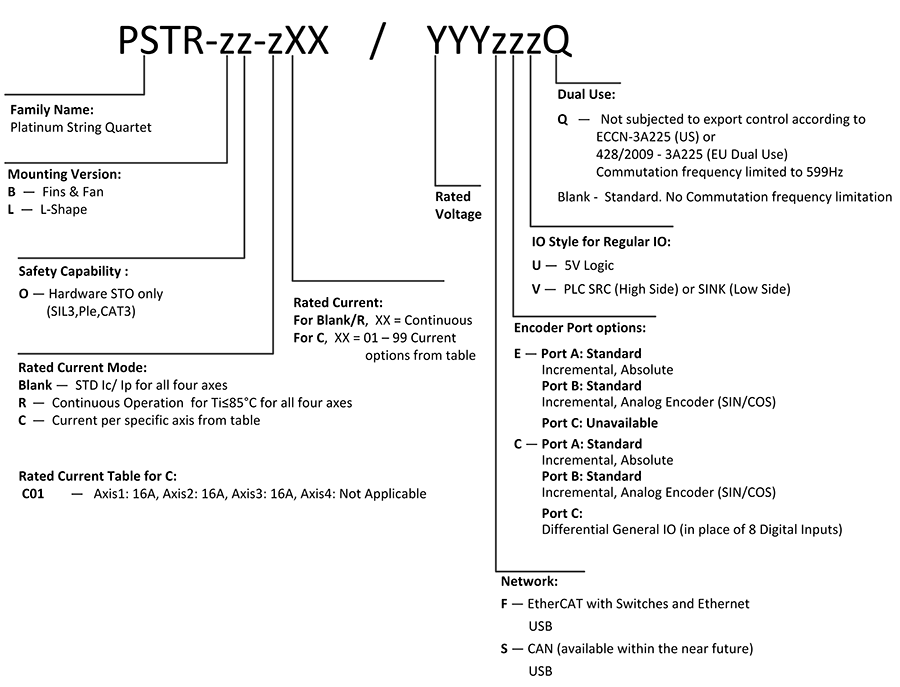

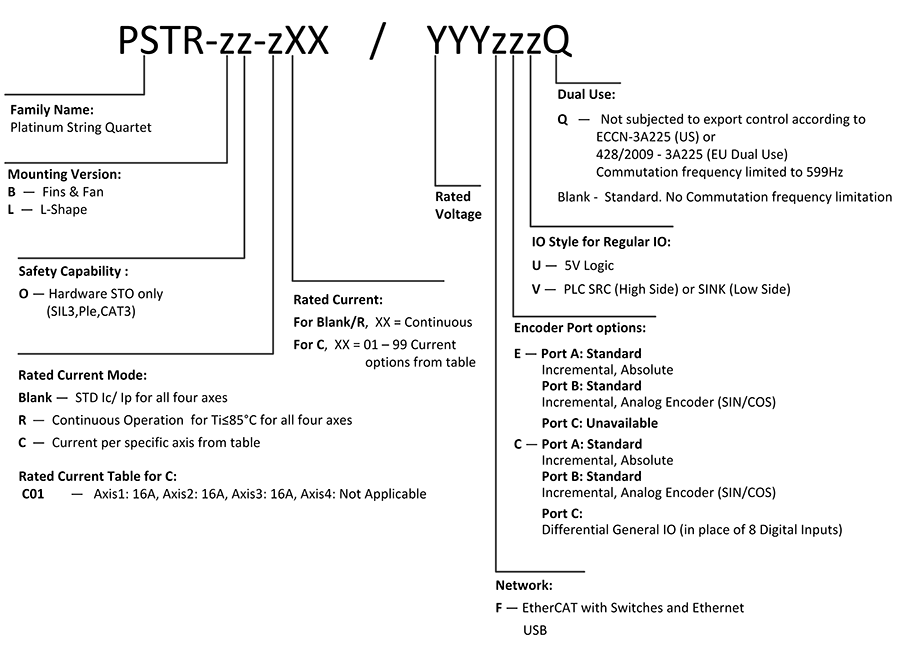

Feature | Units | 6/400 | 16/400 |
|---|---|---|---|
Minimum supply voltage | VDC | 50 | |
Nominal supply voltage | VDC | 325 | |
Maximum supply voltage | VDC | 400 | |
Maximum continuous power output | W | 2000W per axis | 5500W per axis |
Efficiency at rated power (at nominal conditions) | % | > 98 | |
Maximum output voltage | > 95% of DC bus voltage | ||
Amplitude sinusoidal/DC continuous current | A | 6 (per axis) | 16 (per axis) |
RMS (sinusoidal commutation) current ratings | DC | 4.24 (per axis) | 11.31 (per axis) |
Peak current limit | A | 18 (per axis) | 30 (per axis) |
Control Supply
| Feature | Units | Units | Details | |
|---|---|---|---|---|
| L-Shape | Fins+Fan | |||
| Control supply input voltage | V | 18 to 30 | 24 ± 10% | |
| 24V Control supply input power consumption | Without Encoder (VL Only) | W | ≤6.5 | ≤15 |
| With encoder up to 4x300mA@5V | W | ≤13.5 | ≤22 | |
| With encoder up to 4x300mA@11V | W | ≤21 | ≤29.5 | |
Encoder Supply
| Feature | Details |
|---|---|
| 5V supply | 5VDC Nominal, 4.75V÷5.25V; up to 300mA (for each Axis) |
| 11V supply | 11VDC Nominal, 10.6V÷11.5V; up to 300mA (for each Axis) |
Feature | Units | Units | All Types |
|---|---|---|---|
| Weight | g (oz.) | L-Shape: | ~980 g (~34.57 oz) |
| Fins+Fans: | ~2630 g (~92.77 0z) | ||
| Dimensions | mm (in) | L-Shape: | 224 x 133 x 38.3 mm (8.82" x 5.24" x 1.51") |
| Fins+Fans: | 224 x 133 x 80 mm (8.82" x 5.24" x 3.15") | ||
| Mounting method | L-Shape: | Bookshelf | |
| Fins+Fans: | |||
| Degrees of Protection | L-Shape: | IP=20 | |
| Fins+Fans: | IP=20 | ||
