Compact High Voltage Servo Drive
22A/400V, 16A/800V

Description

DC Offline Servo Drive for Extreme Environmental Conditions

The most compact, PCB-mounted servo drive that operates directly from the mains (up to 400 VDC or 800 VDC power source) and delivers up to 10 kW of continuous qualitative power

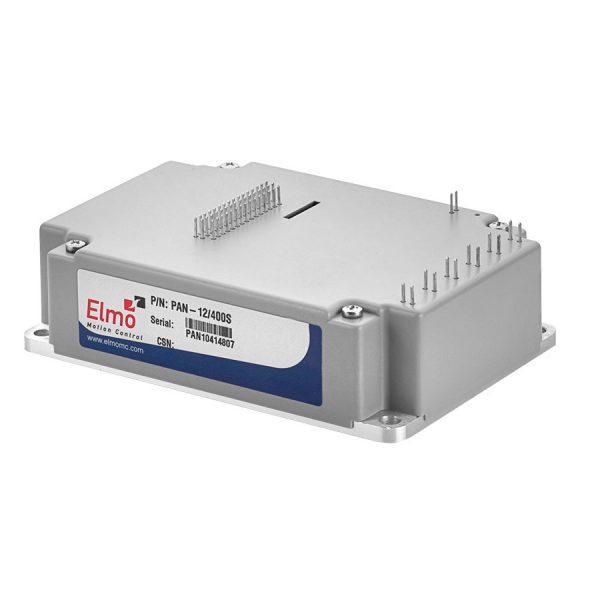

The Panther is a new addition to Elmo’s ExtrIQ product suite – intelligent digital servo drives for sinusoidal, trapezoidal and DC motors that are designed to operate under extreme environmental conditions.

The Panther delivers up to 10 kW of continuous power or 16 kW of peak power in a compact package.

This servo drive is PCB-mounted and it provides top performance, coupled with intelligent networking capabilities in a high level programming environment.

A Feature-rich Solution

The Panther is truly feature-rich, combining high power density, programming flexibility, CANopen networking and numerous motion control features, resulting in a very effective solution for a wide variety of challenging applications.

There are two single DC bus options: 50 – 400 VDC and 100 – 800 VDC, with a built-in smart supply for controlling the back-up capabilities. The Panther can also operate with a 24 VDC auxiliary power supply for the back-up features.

Mating Power Supply ELP-30.

Panther Highlights:

  • Ready for use in extreme applications
  • Based on SimplIQ core motion control technology
  • Ultra-compact, highest power density
  • PCB-mounted
  • Highly efficient
  • Supports a wide variety of feedback sensors
  • Vector control sinusoidal commutation
  • Advanced filtering and velocity gain scheduling for enhanced dynamic performance

Power Ratings for 400 V models

Feature

Units

12/400

16/400

R17/400

R22/400

Minimum supply voltage

VDC

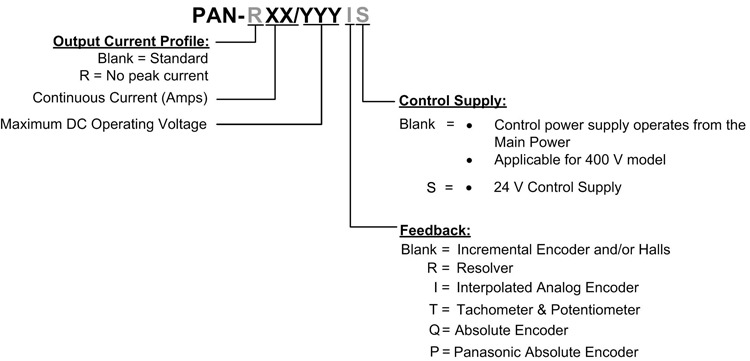

S option in P/N*: 50

No S option in P/N: 100

Nominal supply voltage

VDC

325

Maximum supply voltage

VDC

400

Maximum continuous power output

kW

4

5

5.5

7

Efficiency at rated power (at nominal conditions)

%

> 98

Auxiliary supply voltage option

VDC

18 V to 30 V

Only for Control Supply S option Model

Auxiliary power supply

VA

7

Continuous current limit (Ic) Amplitude
sinusoidal/DC trapezoidal commutation

A

12

16

17

22

Sinusoidal continuous RMS current limit (Ic)

A

8.5

11.3

12

15.5

Peak current limit

A

2 x Ic

No peak

Weight

g (oz)

250 g (8.8 oz)

Dimensions

mm (in)

111 x 76 x 30 (4.33" x 2.95" x 1.18")

Digital in/Digital out/ Analog in

6/4/1

Mounting method

PCB Mounted

Power Ratings for 700 V models

Note: This model will not be used in new designs of the drive.

Feature

Units

8/700

12/700

R11/700

R16/700

Minimum supply voltage

VDC

S option in P/N*: 95+

Nominal supply voltage

VDC

560 for 400 VAC

680 for 480 VAC

Maximum supply voltage

VDC

700

Maximum continuous power output

kW

4.5

7

6.3

9

Efficiency at rated power (at nominal conditions)

%

> 98

Auxiliary supply voltage option

VDC

18 V to 30 V

Only for Control Supply S option Model

Auxiliary power supply

VA

7

Continuous current limit (Ic) Amplitude
sinusoidal/DC trapezoidal commutation

A

8

12

11

16

Sinusoidal continuous RMS current limit (Ic)

A

5.7

8.5

7.8

11.3

Peak current limit

A

2 x Ic

No peak

Weight

g (oz)

250 g (8.8 oz)

Dimensions

mm (in)

111 x 76 x 30 (4.33" x 2.95" x 1.18")

Digital in/Digital out/ Analog in

6/4/1

Mounting method

PCB Mounted

Power Ratings for 800 V models

Feature

Units

8/800

12/800

R11/800

R16/800

Minimum supply voltage

VDC

S option in P/N*: 95+

Nominal supply voltage

VDC

560 for 400 VAC

680 for 480 VAC

Maximum supply voltage

VDC

780

Maximum continuous power output

kW

5

7.5

7

10

Efficiency at rated power (at nominal conditions)

%

> 98

Auxiliary supply voltage option

VDC

18 V to 30 V

Only for Control Supply S option Model

Auxiliary power supply

VA

7

Continuous current limit (Ic) Amplitude
sinusoidal/DC trapezoidal commutation

A

8

12

11

16

Sinusoidal continuous RMS current limit (Ic)

A

5.7

8.5

7.8

11.3

Peak current limit

A

2 x Ic

No peak

Weight

g (oz)

250 g (8.8 oz)

Dimensions

mm (in)

111 x 76 x 30 (4.33" x 2.95" x 1.18")

Digital in/Digital out/ Analog in

6/4/1

Mounting method

PCB Mounted
