Description
New Era Of Servo Control
Miniature Most Powerful Servo Drive
Certified Functional Safety
Composer2, Software in the Loop Powerful Drive’s Capability
Up to 25A/100V, 9A/200V
Up to 2kW of continuous power

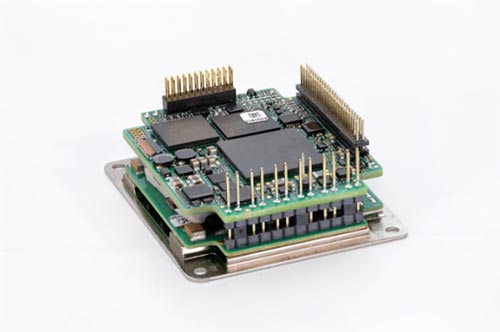

The Platinum Whistle is a compact, digital servo drive, part of Elmo’s innovative Platinum series. The Platinum Whistle provides top servo performance, ultra-fast networking, increased processing power and rich feedback support.
With only 55 x 46 x 19.85 mm, the Platinum Whistle servo drive is one of the world’s smallest servo technology to feature Functional Safety support, safety over EtherCAT (FSoE) and integrated Safe I/Os (optional).
The Platinum series was designed to meet the evolving needs of OEM designers for smarter, smaller, faster servo, with higher functionality and ease-of-use. Platinum drives aim to assist machine and robotic manufacturers in creating better machines through both superior motion-control and utmost safety.
Platinum Whistle HighlightsNEW
- Miniature most powerful servo drive Up to 25A/100V & 9A/200V
- Up to 2000W of continuous power
and 4000W at peak power - Functional Safety IEC 61800-5-2 (SIL-3, Cat4 PL-e) & FSoE

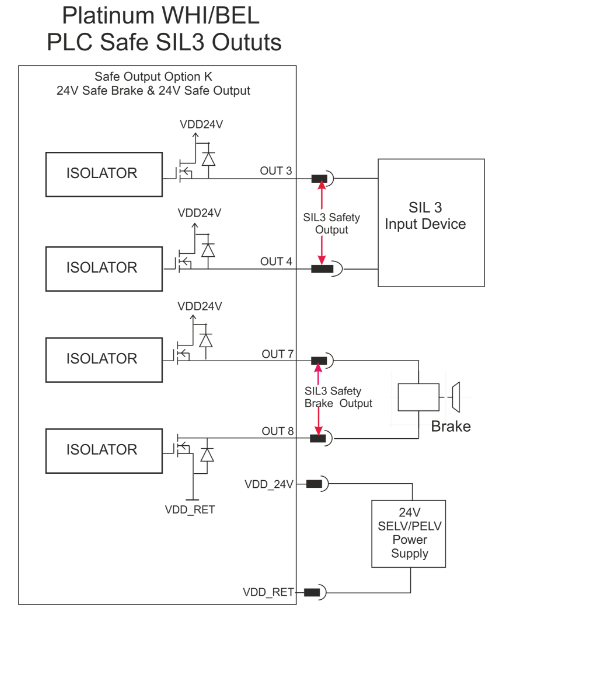

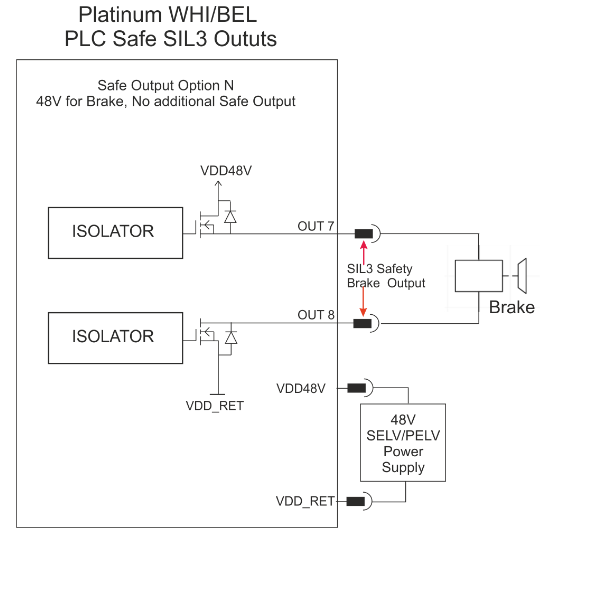

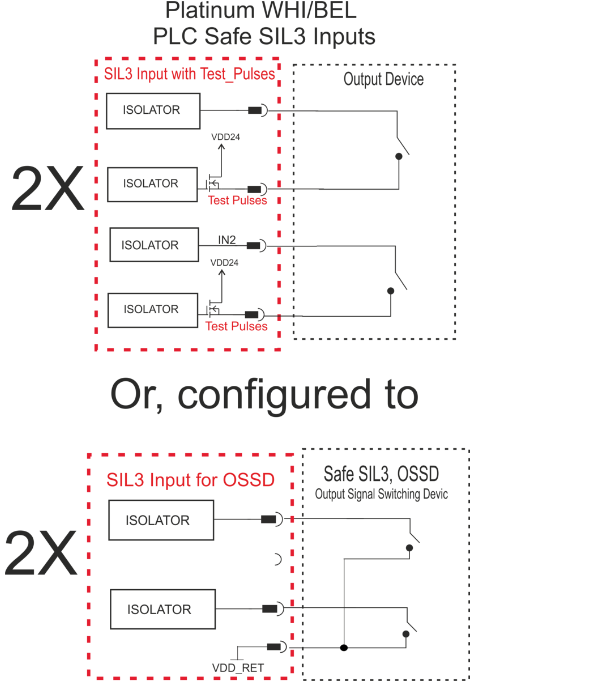

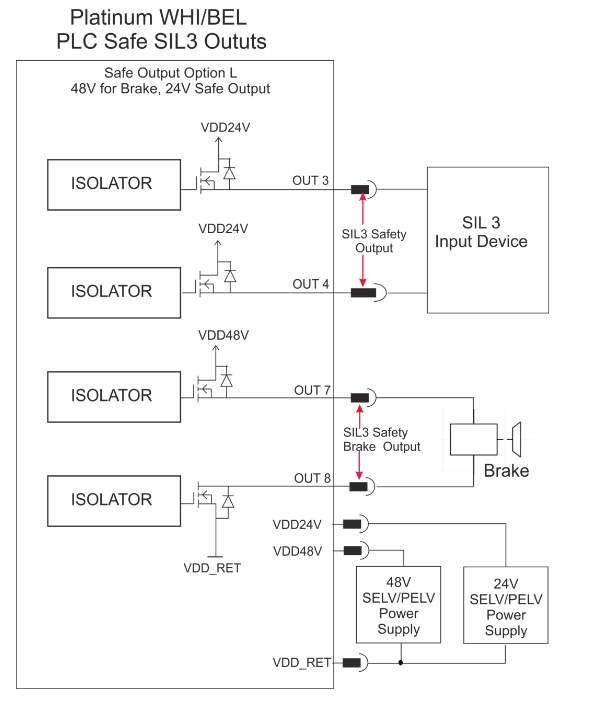

- Integrated Safe I/Os (2 SIL3 inputs + 2 STO hardware inputs + SIL3 brake outputs + SIL3 output)
Platinum Series HighlightsNEW
- Best-In-Class servo performance
- World’s smallest servo technology to feature functional safety and safety over EtherCAT (FSoE)
- Higher bandwidth, faster response, enhanced linearity and highest control resolutions
- Ultra-efficient EtherCAT with cycling down to 100us, high synchronization with negligible jitters and near zero latency
- Added feedback support: up to three simultaneously, or two absolute feedbacks
- High processing power with large memory resources for better control, enhanced processing, and real time recording

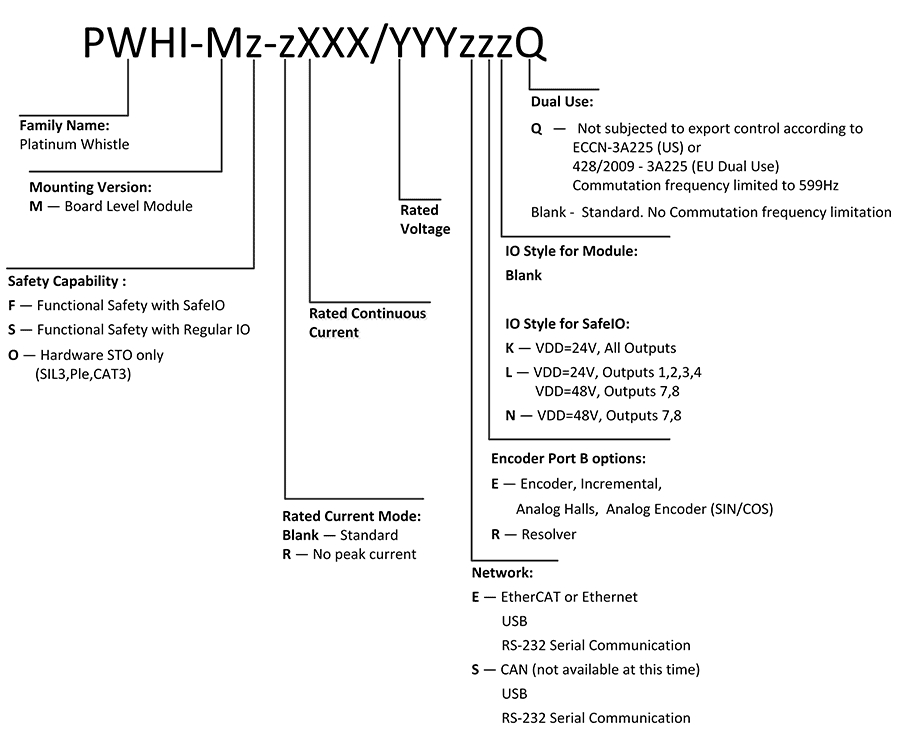

Feature | Units | 1/100 | 2.5/100 | 5/100 | 10/100 | 15/100 | 20/100 | 25/100 |
---|---|---|---|---|---|---|---|---|
Minimum supply voltage | VDC | 12 | ||||||
Nominal supply voltage | VDC | 85 | ||||||
Maximum supply voltage | VDC | 95 | ||||||
Maximum continuous power output | W | 80 | 200 | 400 | 800 | 1200 | 1600 | 2000 |
Efficiency at rated power | % | > 99 | ||||||
Maximum output voltage |
| > 95% of DC bus voltage at f = 22 kHz | ||||||
Amplitude sinusoidal/ | A | 1.0 | 2.5 | 5 | 10 | 15 | 20 | 25 |
Sinusoidal continuous | A | 0.7 | 1.8 | 3.5 | 7 | 10.6 | 14.1 | 17.5 |
Peak current limit | A | 2 x Ic |
Feature | Units | 3/200 | 6/200 | 9/200 |
---|---|---|---|---|
Minimum supply voltage | VDC | 12 | ||
Nominal supply voltage | VDC | 170 | ||
Maximum supply voltage | VDC | 195 | ||
Maximum continuous power output | W | 480 | 960 | 1450 |
Efficiency at rated power (at nominal conditions) | % | > 99 | ||
Maximum output voltage |
| > 95% of DC bus voltage at f = 22 kHz | ||
Amplitude sinusoidal/DC continuous current | A | 3 | 6 | 9 |
Sinusoidal continuous RMS current limit (Ic) | A | 2.1 | 4.2 | 6.3 |
Peak current limit | A | 2 x Ic |
Control Supply
Feature | Units | Units | Details |
---|---|---|---|
Control supply input voltage | V | Isolated DC source: 12 to 60V | |
24V Control supply input power consumption | Without encoder | W | ≤4 |
With encoder up to 400mA@5V | W | ≤6 | |
With encoder up to 300mA@11V | W | ≤7 |
Encoder Supply
Feature | Details |
---|---|
5V supply | 5V Nominal, 4.75V÷5.25V up to 400mA |
11V supply only with SafeIO Module | 11V Nominal, 10.6V÷11.5V up to 300mA |
Feature | Units | All Types |
---|---|---|
Weight | g (oz) | ~55 g (1.94 oz) |

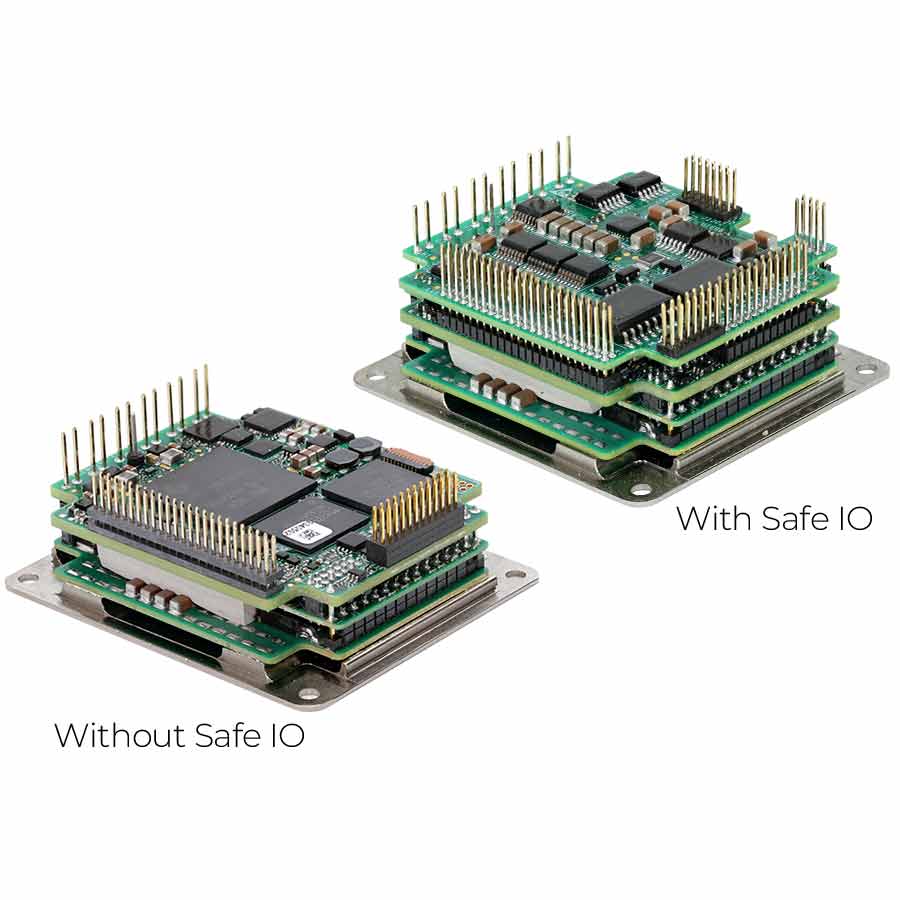

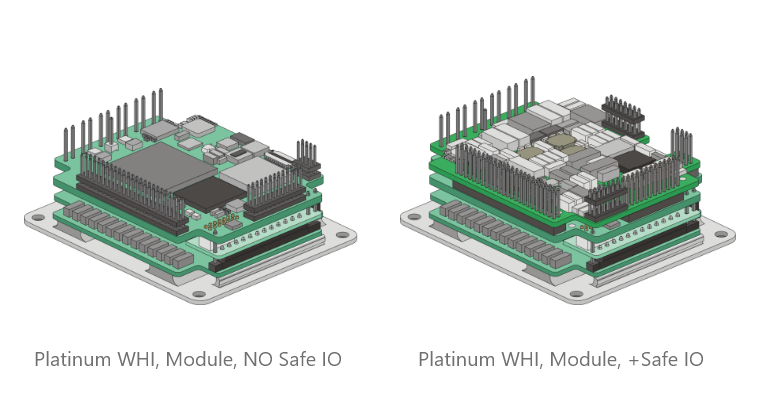

Weight with SafeIO Board | g (oz) | ~65 g (2.29 oz) |

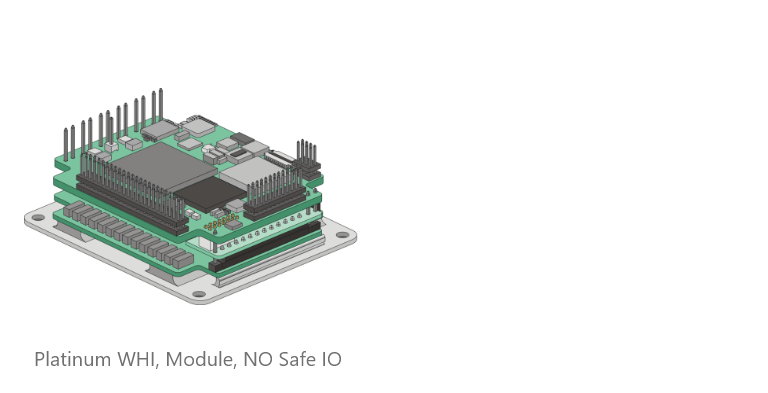

Dimension | mm (in) | 55 x 46 x 19.85 mm (2.2" x 1.8" x 0.78") |

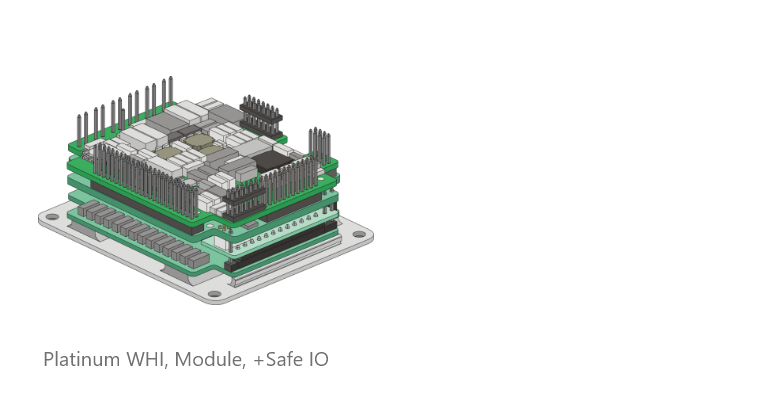

Dimension with SafeIO Board | mm (in) | 55 x 46 x 21.45 mm (2.2" x 1.8" x 0.85") |
Mounting method | PCB mount |

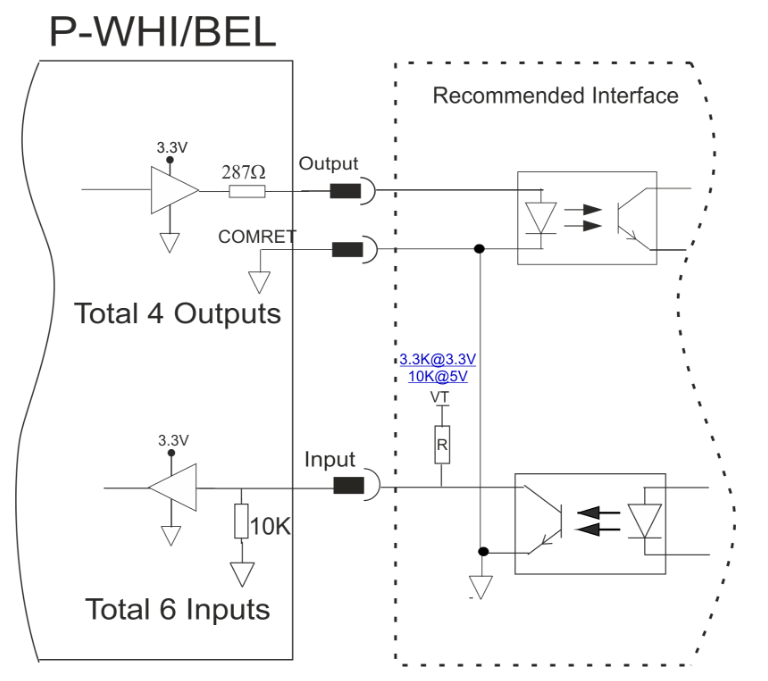

- Option for integrated Safe I/Os: up to 6 digital inputs and 4 digital outputs (PLC SRC)
- All Platinum line of servo drives feature functional safety (Learn more…)
- In compliance with IEC 61800-5-2 (SIL-3) standards & safety over EtherCAT (FSoE)
- Simple to implement safe-motion with rich functionality through Elmo Application 2.7 software (Learn more…)

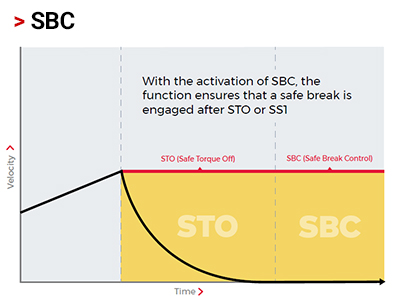

- Platinum Whistle safety functions supported: STO, SLP, SLS, SS1, SS2, SOS, SLT & SBC
