Compact High Current Servo Drive
20-45A/60VDC
20-35A/100VDC
3-30A/200VDC

Description

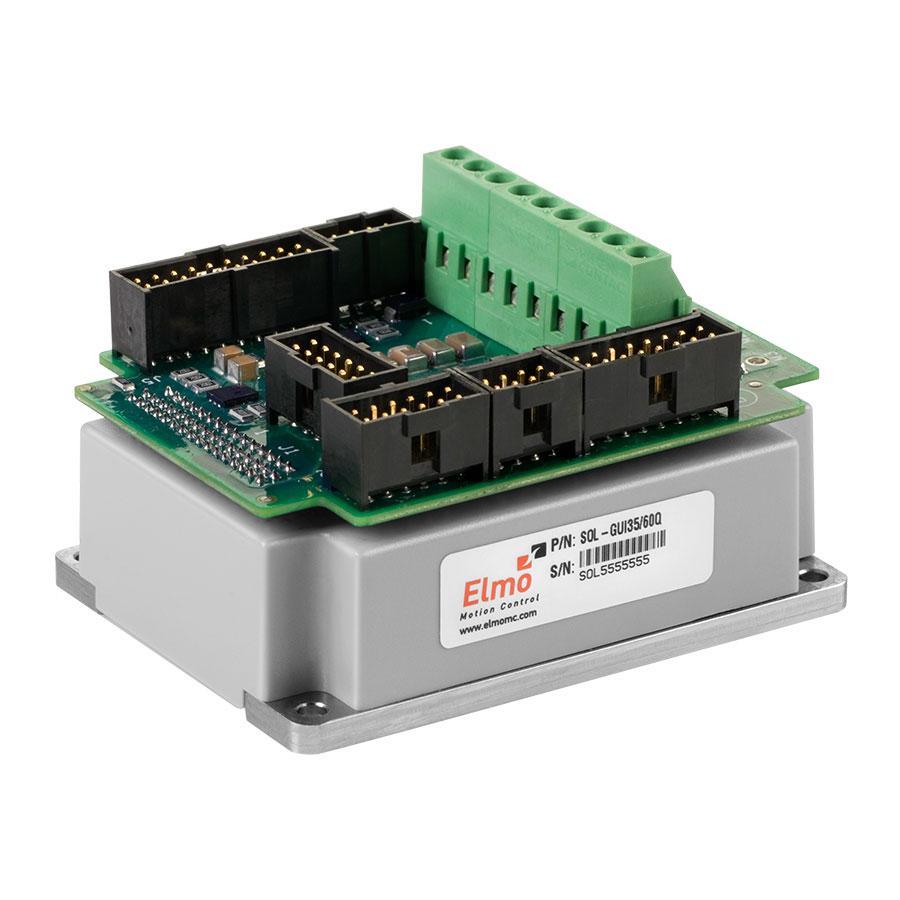

Solo Guitar is a ready to use high power servo drive

Ready-to-use Servo Drive: High power and superior intelligence in a small package

(also available with Absolute Encoder}

The Integrated Guitar Solution: DC input for DC brush, sinusoidal and trapezoidal motors

The Solo Guitar is an integrated solution designed to simply and efficiently connect Elmo’s Guitar servo drive directly to an application.

The solution consists of the Guitar together with a convenient connection interface that either reduces or eliminates development time and resources when designing the PCB board for an application.

Solo Guitar Highlights:

  • The Solo Guitar series of digital servo drives is designed to deliver the highest density of power and intelligence.
  • The Solo Guitar is designed for OEMs. It operates from a DC power source in current, velocity, position and advanced position modes, in conjunction with a permanent-magnet synchronous brushless motor, DC brush motor, linear motor or voice coil.
  • The Solo Guitar can operate as a stand-alone device or as part of a multi-axis system in a distributed configuration on a real-time network.
  • The Solo Guitar is equipped with four powerful digital outputs. It is designed to deliver up to 250 mA in each output when it is defined as general purpose applications or up to 500 mA when it is defined for braking applications.
  • The Solo Guitar provides two differential ports for Auxiliary feedback. The relevant functionality of Feedback B port is configured via the user interface.
  • The Solo Guitar provides an input for thermal motor protection. Digital input 1 is allocated for that purpose.
  • The Solo Guitar provides a “main differential buffered output” (not available for the Solo Guitar absolute feedback model ).
  • The Solo Guitar drive is easy to set up and tune with Elmo’s Composer software tools.
  • This Windows-based application enables users to quickly and simply configure the servo drive for optimal use with their motor.
  • The Solo Guitar, as part of the SimplIQ product line, is fully programmable with the Elmo Metronome motion control language.
  • The Solo Guitar delivers up to 4.8 kW of continuous power or 5.4 kW of peak power, package (46.7 x 61 x 80 mm or 1.84″ x 2.4″ x 3.15″).
  • The Solo Guitar uses a 12 ~ 195 VDC isolated DC power source (not included with the Solo Guitar).
  • A “smart” control-supply algorithm enables the Solo Guitar to operate with only one power supply, with no need for an auxiliary power supply for the logic.
  • To back up and store control parameters in the event of a power outage, an external 12 ~ 195 VDC isolated supply can be connected to the Solo Guitar to maintain maximum flexibility and backup functionality when needed.

Feature

Units

20/48

35/48

20/60

25/60

35/60

20/100

25/100

3/200

6/200

10/200

17/200

R45/48

R45/60

R35/100

R30/200

Minimum
supply voltage

VDC

11

11

14

23

46

11

14

23

46

Nominal
supply voltage

VDC

42

42

50

85

170

42

50

85

170

Maximum
supply voltage

VDC

48

48

59

95

195

48

59

95

195

Maximum
continuous
power output

W

400

1300

960

1200

1700

1600

2000

480

960

1600

2700

1700

2200

2800

4800

Efficiency at
rated power (at
nominal
conditions)

%

> 97

Maximum
output voltage



97% of DC bus voltage at f=22 kHz

Amplitude
sinusoidal/DC
continuous
current

A

20

35

20

25

35

20

25

3

6

10

17

45

45

35

30

Sinusoidal
continuous RMS
current limit (Ic)

A

14.1

25

14.1

17.7

25

14.1

17.7

2.12

4.2

7

12

32

31.8

24.8

21.2

Peak current
limit

A

2 x Ic

No peak

Weight

g (oz)

200 g (7.05 oz)

Dimensions

mm (in)

80 x 61 x 46.7

(3.15" x 2.4" x 1.84")

Digital in/Digital
out/Analog in



5/4/1

Feature
Standard
Advanced
CANopen interface (DS 301, DS 402)
Yes
Yes
Current mode
Yes
Yes
Velocity mode, follower
Yes
Yes
Position jog, follower, point-to-point
Yes
Yes
Pulse and direction input
Yes
Yes
Dual loop, velocity and position
No
Yes
PT position versus time mode
Yes
Yes
PVT position and velocity versus time
Yes
Yes
ECAM / Follower
No
Yes
Overall user program size
2 KB
32 KB
Current Control
  • Fully digital

  • Sinusoidal commutation with vector control or trapezoidal commutation
    with encoder and/or digital Hall sensors

  • 12-bit current loop resolution

  • Automatic gain scheduling, to compensate for variations in the DC bus power supply
