Description

New Era In Servo Control

Certified Functional Safety
Composer2, Software in the Loop Powerful Drive’s Capability

Designed, qualified, verified, manufactured and tested to withstand Extreme Environments

Ultra Compact, A Complete 4 Axis,
Motion Control System, 4 X 5000W
Up to P50A/100V, R35A/200V

Specifications

Ambient Operating Temperature

-40°C to +70°C

Thermal Shock

-40°C to +70°C within 3 min

Altitude

-400 m to 12,000 m (-1312 to 39370 feet)

Relative Humidity

up to 95% non-condensing at 25°C
up to 90% non-condensing at 42°C

Vibration

20 Hz –2000 Hz, 14.6 grms

Mechanical Shock

±20g
Half sine, 11 msec., 3 per direction (overall 18)

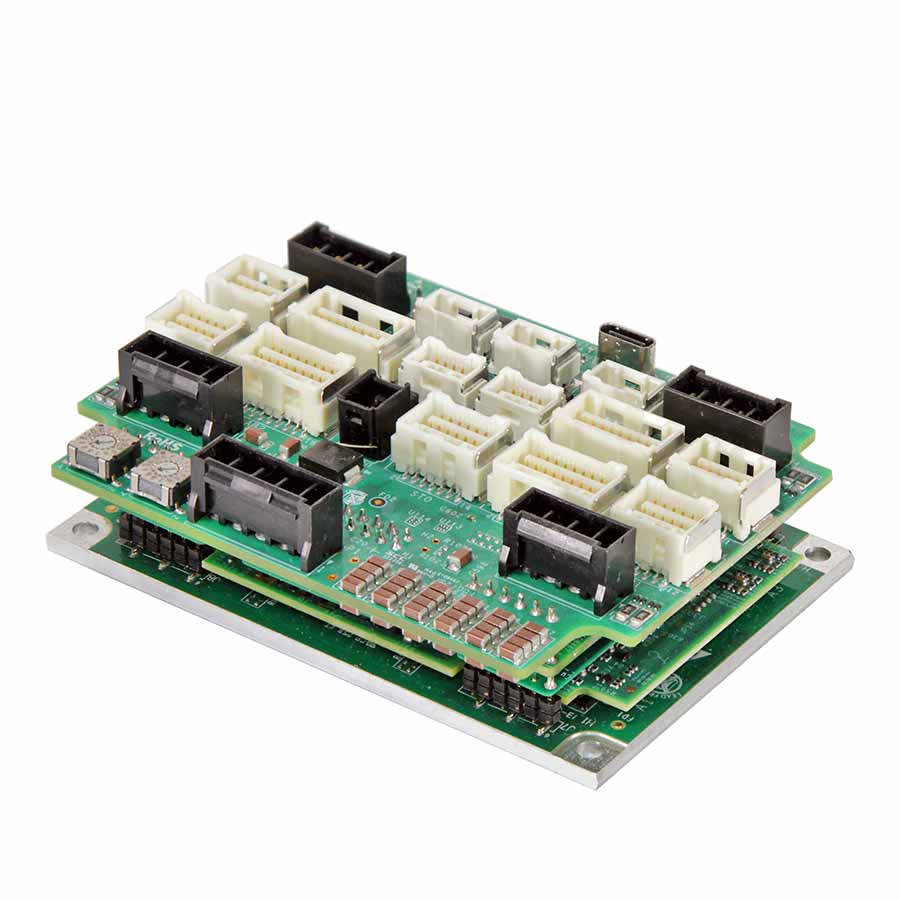

The Platinum Solo Bee Quartet is an integrated solution 4 x 5kW powerful servo drive in a compact package.

This advanced multi-axis controller provides top performance, , advanced networking as well as a fully featured motion controller and local intelligence.

The ExtrIQ Platinum series was designed to meet the evolving needs of the extreme environmental motion control solutions. The Platinum Solo Bee Quad exhibits smarter, smaller, faster servo, with higher functionality and ease-of-use. The ExtrIQ Platinum drives aim to assist any Harsh Environment Servo and Motion application.

Platinum Solo Bee Quartet Highlights^NEW

Ready for the Extreme, -Ultra-small, most powerful 4 axes motion and servo controller4X 5000W Servo Drive Intelligent Module
High Precision Servo Control
Advanced Safety Functionality (STO)
Rich I/O Support
Innovative Platinum line core
Fast EtherCAT Networking
Functional Safety: STO (SIL3, PLe,CAT3)

Platinum Series Highlights^NEW

Best-In-Class Motion & servo performance
Higher bandwidth, faster response, enhanced linearity and highest control resolutions
Ultra-efficient EtherCAT with cycling down to 100us, high synchronization with negligible jitters and near zero latency
Added feedback support: up to three simultaneously, or two absolute feedbacks
Composer2, Proprietary Drive Level SIL( Software In The Loop), allows running customer’s control algorithms within the drive’s real-time
High processing power with large memory resources for better control, enhanced processing, and real time recording

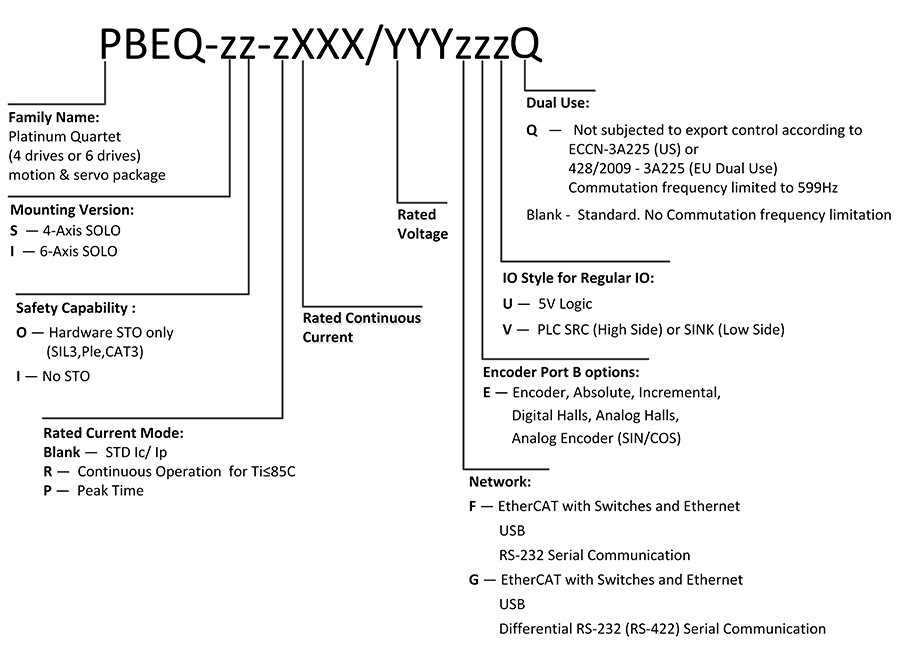

Feature	Units	1/100	3/100	6/100	10/100	15/100	25/100	P50/100
Minimum supply voltage	VDC	10
Nominal supply voltage	VDC	85
Maximum supply voltage	VDC	95
Maximum continuous power output	W	70	220	440	735	1100	2000	2000
Efficiency at rated power (at nominal conditions)	%	> 99
Maximum output voltage		Up to 96% of DC bus voltage
Amplitude sinusoidal/DC continuous current	A	1	3	6	10	15	25	25
Sinusoidal continuous RMS current limit (Ic)	A	0.7	2.1	4.2	7.1	10	17.7	17.7
Peak current limit	A	2 x Ic
Peak Time	Secs	Standard 3secs						Up to 30secs

Feature	Units	3/200	6/200	10/200
Minimum supply voltage	VDC	20
Nominal supply voltage	VDC	170
Maximum supply voltage	VDC	195
Maximum continuous power output	W	440	880	1450
Efficiency at rated power (at nominal conditions)	%	> 99
Maximum output voltage		Up to 96% of DC bus voltage
Amplitude sinusoidal/DC continuous current	A	1	6	10
Sinusoidal continuous RMS current limit (Ic)	A	2.1	4.2	7.1
Peak current limit	A	2 x Ic

Feature	Units	R15/200	R35/200
Minimum supply voltage	VDC	20
Nominal supply voltage	VDC	170
Maximum supply voltage	VDC	195
Maximum continuous power output	W	2200	5100
Efficiency at rated power (at nominal conditions)	%	> 99
Maximum output voltage		Up to 96% of DC bus voltage
Amplitude sinusoidal/DC continuous current	A	15	35
Sinusoidal continuous RMS current limit (Ic)	A	10.6	24.8
Peak current limit	A	Ic

Control Supply

Feature	Units	Units	Details
Control supply input voltage		V	Isolated DC source: 14 to 95V
24V Control supply input power consumption	Without encoder	W	≤4
24V Control supply input power consumption	With 4 x 300mA encoders (1.2A@5VE)	W	≤11.5

Encoder Supply

Feature

Details

5V supply

5V ±5% Total current capability of 1200mA.

5VE per axis	Current per pin	Total Current per axis
Pin 1	200mA	300mA
Pin 2	200mA	300mA

Feature	Units	All Types
Weight	g (oz)	174g (6.14 oz)
Dimension	mm (in)	95 x 72 x 30.3 mm(3.74” x 2.84” x 1.19”)
Mounting method		Panel Based
Interface Board LEDs		Drive Status, EtherCAT Status, EtherCAT Link In and Out, LAN Link, LAN Speed

All Platinum line of servo drives feature functional safety (Learn more…)
In compliance with IEC 61800-5-2 (SIL-3) standards & safety over EtherCAT (FSoE)
Simple to implement safe-motion with rich functionality through Elmo Application 2.7 software (Learn more…)
Platinum Bee Quad safety functions supported: STO, SLP, SLS, SS1, SS2, SOS, SBC and SLT
