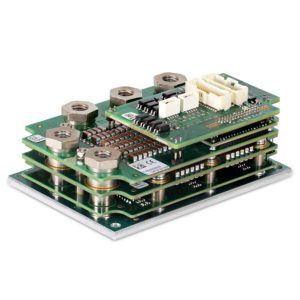

Gold Twitter
NANO Servo Drive Up to 5600 Watts
Up to 30A/60V, 25A/100V, 10A/200V
Up to R50A/60V, R80A/80V, R70A/100V, R45A/150V, R35A/200V
Elmo offers a wide range of versatile Servo drives as part of a motion control solution for every industrial automation application. The Gold Servo Drive incorporates the most advanced control and power conversion technologies which in conjunction with Elmo’s EAS II (Elmo Application Studio), optimally moves any mechanical load scenario up to the limits of the mechanical system.
Providing total compliance with global industry standards, the Gold Line Servo Drives are unparalleled in performance, capabilities, and flexibility. They harness the full power of cutting-edge EtherCAT and CANopen networking communication. The Gold Servo Drive comes in a wide range of sizes, operating voltages, output currents and support most feedback sensors such as incremental encoders, analog (sine/cosine) and resolvers with high precision, high resolution, built-in multiplier, 2- and 3-Phase absolute analog halls and absolute serial encoders.
The Gold Servo Drives have the sampling time for current, velocity, and position loops resulting in very high bandwidths as well as robust stability margins.
In addition, the drives have very high linearity with a current dynamic range of 2000:1 (100A drive smoothly runs a 0.05A load) and a flexible control loop order that can deal with any mechanical dynamic system characteristic.
With the Gold Servo Drives, any feedback sensor combination for dual loop architecture is possible thanks to the flexible configuration of feedback organization via Elmo’s unique and advanced sensor socket interfaces.
The Gold Servo Drives are present in almost every industry, from Medical Devices, Smart Warehousing, and Semiconductor to Aerospace, Underwater applications, and Laboratory Equipment. Elmo’s Gold Line is implemented in a wide range of applications such as Guiding Lights on top of the Eifel Tower, Submarines and Underwater ROVs, House Building Robots, Wafer Handling and Inspection Machines, Antennas, High-Resolution Microscopes, Airport Guiding AGVs, Exoskeletons, Order Picking Robotic AGV and Electronic Board Probe Tester.
NANO Servo Drive Up to 5600 Watts
Up to 30A/60V, 25A/100V, 10A/200V
Up to R50A/60V, R80A/80V, R70A/100V, R45A/150V, R35A/200V
NANO Servo Drive Up to 5600 Watts
Up to 30A/60V, 25A/100V, 10A/200V
Up to R50A/60V, R80A/80V, R70A/100V, R45A/150V, R35A/200V
Ultra Small Servo drive
160A/80VDC, 140A/100VDC, 40A/200VDC
Ultra Small Servo drive
160A/80VDC, 140A/100VDC, 40A/200VDC
Ultra Small Servo drive
100A/200V, 210A/100V, 240A/80V, 270A/60V
Miniature Servo Drive
1-20A/100VDC, 3-9A/200VDC
Miniature Servo Drive
1-20A/100VDC, 3-9A/200VDC
Miniature Servo Drive
1-20A/100VDC, 3-9A/200VDC
Smart Stepper Servo Drive
1-20A/100VDC, 3-9A/200VDC
Smart Stepper Servo Drive
1-20A/100VDC, 3-9A/200VDC
Compact High Current Servo Drive
20-50A/100VDC, 10-20A/200VDC
Compact High Current Servo Drive
20-50A/100VDC, 10-20A/200VDC
Compact servo drive
20-50A/100VDC, 10-20A/200VDC
Very Small High voltage Servo Drive
5-7A/400VDC
Very Small High voltage
5-7A/400VDC
Compact High Voltage Servo Drive
6-22A/400VDC, 8-16A/800VDC,
*900VDC optional
Compact High Voltage Servo Drive
6-22A/400VDC, 8-16A/800VDC,
*900VDC optional
Compact High Voltage Servo Drive
6-22A/400VDC, 8-16A/800VDC,
*900VDC optional
Ultra High Current Compact Servo Drive
430A/80VDC 360A/100VDC
Ultra High Current Compact Servo Drive
650A/80VDC, 550A/100VDC
High voltage, High Current Compact Servo Drive
50-100A/400VDC, 35-100A/800VDC, *900VDC optional
