Most Powerful Miniature Smart Servo Drive, over 16KW
100A/200V, 210A/100V, 240A/80V, 270A/60V

Description

Gold Solo Triple Twitter

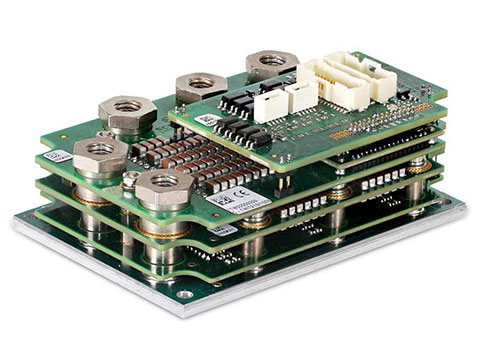

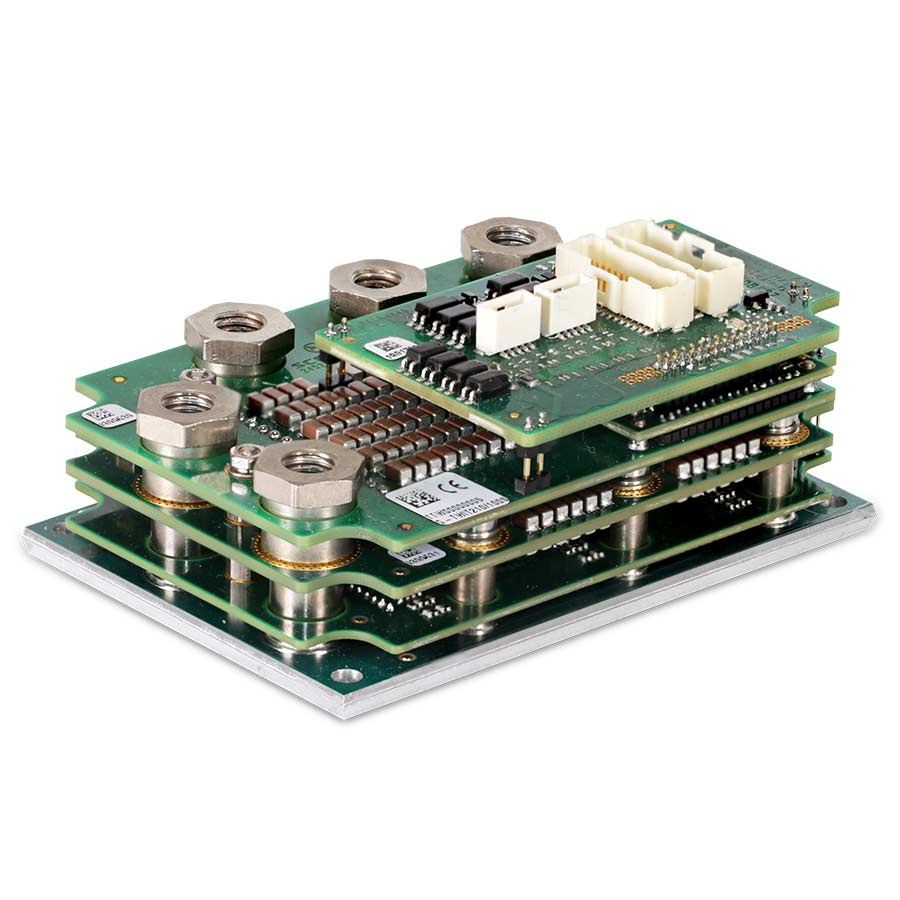

Most Powerful Miniature Smart Servo Drive, over 16KW in 55 x 80 x 34.7 mm

100A/200V, 210A/100V, 240A/80V, 270A/60V

The Ultra High Current Gold Solo Triple (EtherCAT or CAN) package:

This advanced, high power density servo drive provides top performance, advanced networking and built-in safety, as well as a fully featured motion controller and local intelligence. Power to the Gold Solo Triple Twitter is provided by a DC power source which is isolated from the Mains. The Gold Solo Triple Twitter can operate with single or dual power supplies. If separation between the main DC power source and a control supply is required, then a control supply (isolated from the Mains) is required according to the Part Number.

The Gold Solo Triple Twitter can operate as a stand-alone device or as part of a multi-axis system in a distributed configuration on a real-time network. The drive is easily set up and tuned using the Elmo Application Studio (EASII) software tools, and is fully programmable with the Elmo motion control languages.

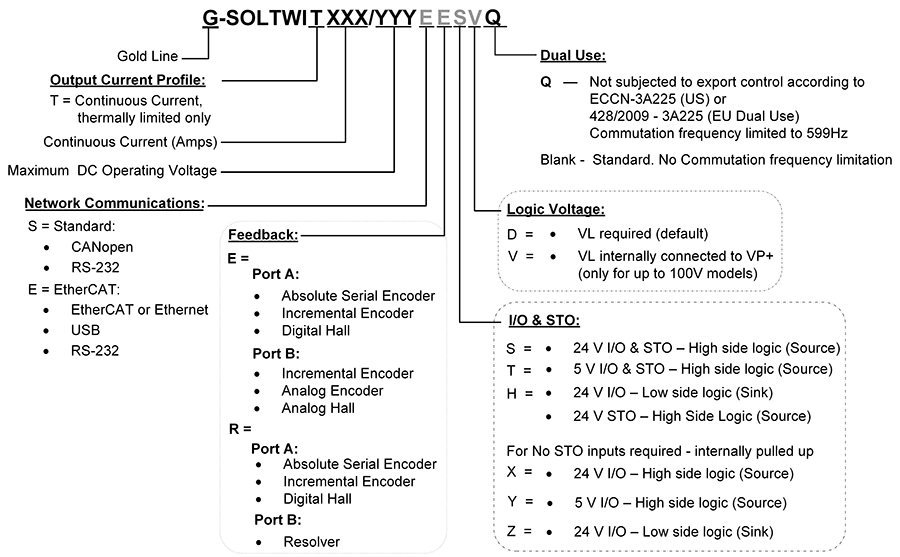

The Gold Solo Triple Twitter is available in a variety of models. There are multiple power rating options, different communications options, a number of feedback options and different I/O configuration possibilities.

Gold Solo Triple Twitter Highlights:

  • High power density, over 16,000 of “Qualitative” Watts
  • Ultra high current – up to 270A/60V, 240A/80V, 210A/100V, 100A/200V
  • Easy to connect, simple to configure
  • Record-setting weight of only 210 grams (7.4 Oz)
  • Ultra Small, Ultra Efficient
  • Advanced networking by EtherCAT Or CANOpen
  • Supports any feedback sensor in single, dual and gantry configurations
  • Incorporates Proprietary “Fast and Soft Switching Technology” resulting in >99% efficiency yet negligible EMI

Feature

Units

T270/60

T240/80

T210/100

T100/200

Minimum supply voltage

VDC

12

Nominal supply voltage

VDC

45

65

85

170

Maximum supply voltage

VDC

55

75

95

195

Maximum continuous Electrical power output

kW

12.5

15

17

16.5

Efficiency at rated power
(at nominal conditions)

%

> 99

Maximum output voltage



Up to 96% of DC bus voltage

Control Supply

V

12VDC- 95VDC,
Up to 4W For EtherCat option
Up to 2.5W for CAN option

Amplitude sinusoidal continuous current

A

270

240

210

100

3-Phase Sinusoidal continuous
RMS current limit (Ic)

A

190

170

150

70

Current limit

A

Max Output current is guaranteed for THeat-Sink  <85°C

Feature

Units

All Types

EtherCAT Version Weight

g (oz)

210.0 g (7.39 oz)

CAN Version Weight

mm (in)

205.0 g (7.22 oz)

EtherCAT Version Dimension

mm (in)

55 x 80 x 34.7 mm (2.16" x 3.15" x 1.37")

CAN Version Dimension

mm (in)

55 x 80 x 32.8 mm (2.16" x 3.15" x 1.29")

Mounting method

Panel Based Mounting
