Standard device communications via Ethernet/IP adaptor

Used In:

  • Ethernet/IP network device applications

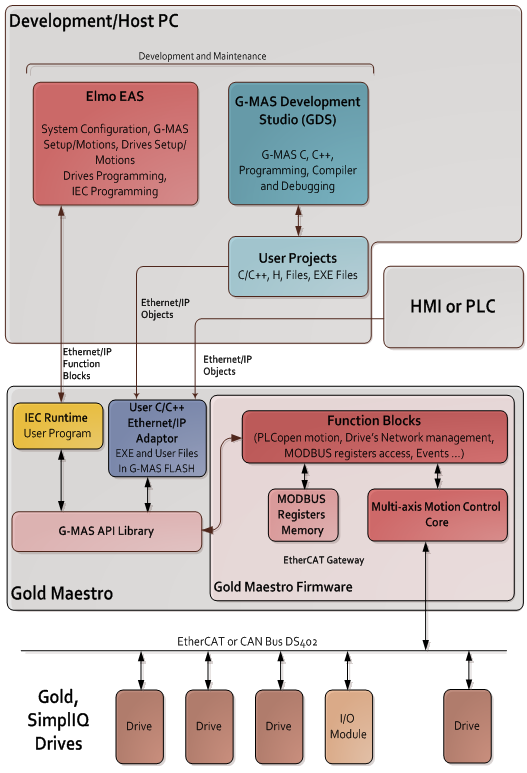

The G-MAS is easily added to a standard Ethernet/IP network by simply defining or developing the G-MAS as an Ethernet/IP adapter. Using this tool builds a Ethernet/IP communications layer between the G-MAS and external devices (for instance, Rockwell PLC Clients).

A programmer need not be fluent in CIP or Ethernet/IP interfaces, or even TCP/IP Socket interfaces, in order to use Ethernet/IP tasks. The G-MAS provides the Ethernet/IP communications interface via C/C++ libraries.

Design Features

  • Programmable device tags
  • Programmable adapter tags
  • Assemblies
  • Special configuration of Producer/Consumer tags
  • IEC function blocks for Ethernet/IP tags.

The G-MAS supports Ethernet IP as an Adapter device (Server). A Scanner device is required in order to connect to the G-MAS.

  • See full details on Ethernet IP functionality.
  • Ethernet IP users are able to define Assemblies, Device Tags or an Adapter Tag.
  • Ethernet IP functionality is enabled using an extensive library that supports a full set of API functions.
