G-MAS PLCOpen IEC 61131-3 Programming

High-end software development using IEC and other languages

Description

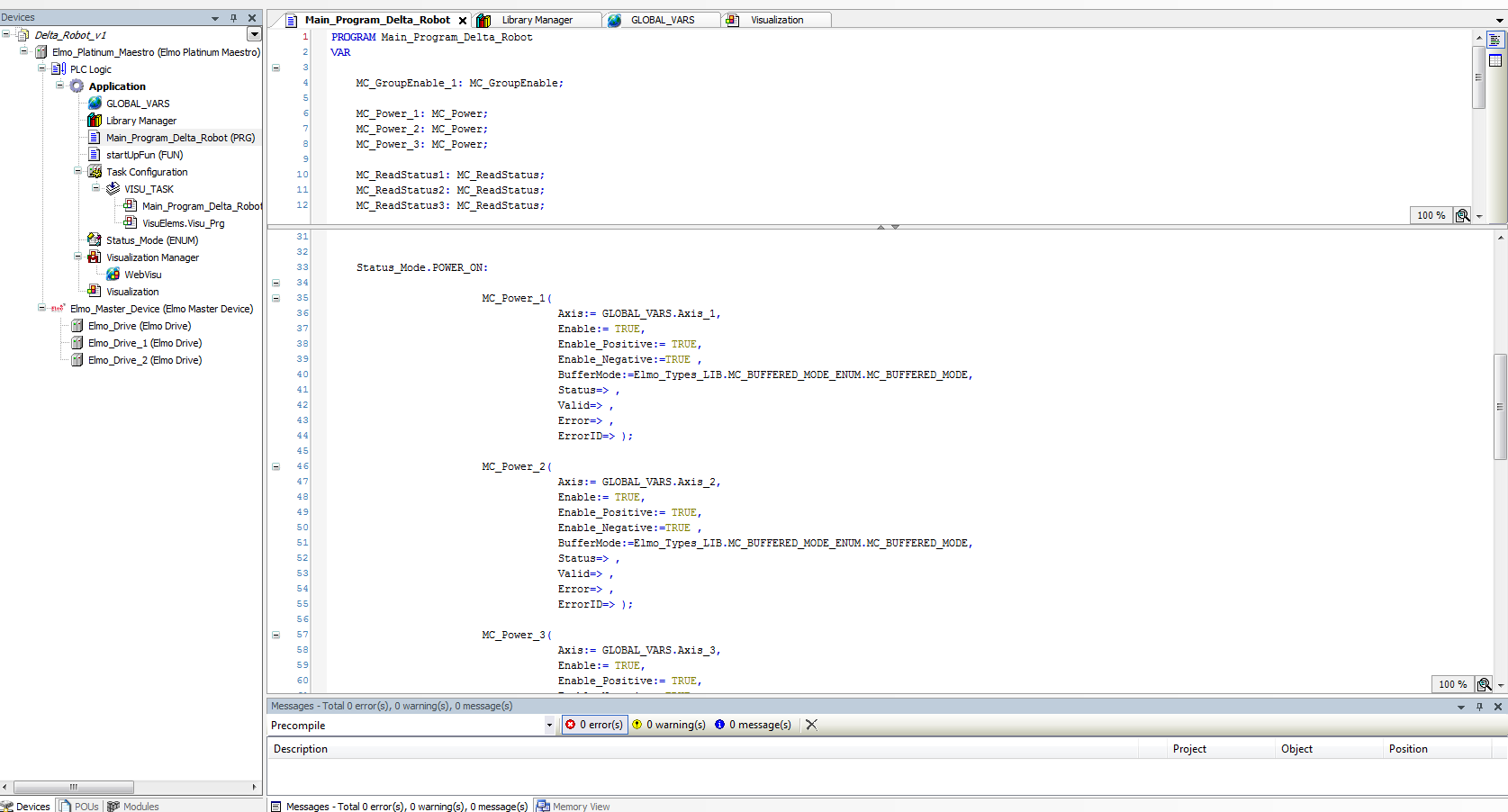

The IEC G-MAS PLCOpen programming tool is built in to the Elmo Application Studio (EAS). It enables development of G-MAS programs in full accordance with the IEC standard and supports all five IEC languages.

A programmer can use all standard PLC-Open motion functions and administrative functions that are supported by G-MAS. The tool enables Built-in complete and complicated software for a wide range of high end motion solutions. It includes abundant sample code, motion libraries and templates to ease and simplify integration.

Using the IEC G-MAS PLCOpen tool, a programmer can Built-in libraries which can be reused in multiple projects and software solutions. The tool features a simple, intuitive graphical user interface.

The tool also enables users without any programming knowledge to exploit most G-MAS software capabilities.

The IEC G-MAS PLCOpen tool supports IEC 61131-3, which defines both graphical and textual PLC programming language standards:

•  Ladder diagram (LD), graphical
•  Function block diagram (FBD), graphical
•  Structured text (ST), textual
• Instruction list (IL), textual
• Sequential function chart (SFC), has elements to organize programs for sequential and parallel control processing.

Design Features

• Easy-to-use graphical and textual development environment
• Supports all five IEC standard languages: IL, ST, LD, FBD, SFC
• Select a preferred IEC language or a mix of several programming languages in the same project
• Includes ready-to-use motion libraries and sample code examples
• Motion templates in all supported languages
• Manage the performance of all complex motion features that are supported by G-MAS
• Supports conditional and time-based state modules
• Run as standalone program within G-MAS
• Supports wide variety of communications protocols, including: TCP/UDP IP, Ethernet/IP, MODBUS and IOs
• Provides HTML-based HMI tool
