MINI ETUDE DEMO CASE

170 x 200 x 276 mm
(6.69″ x 7.87″ x 10.86″)

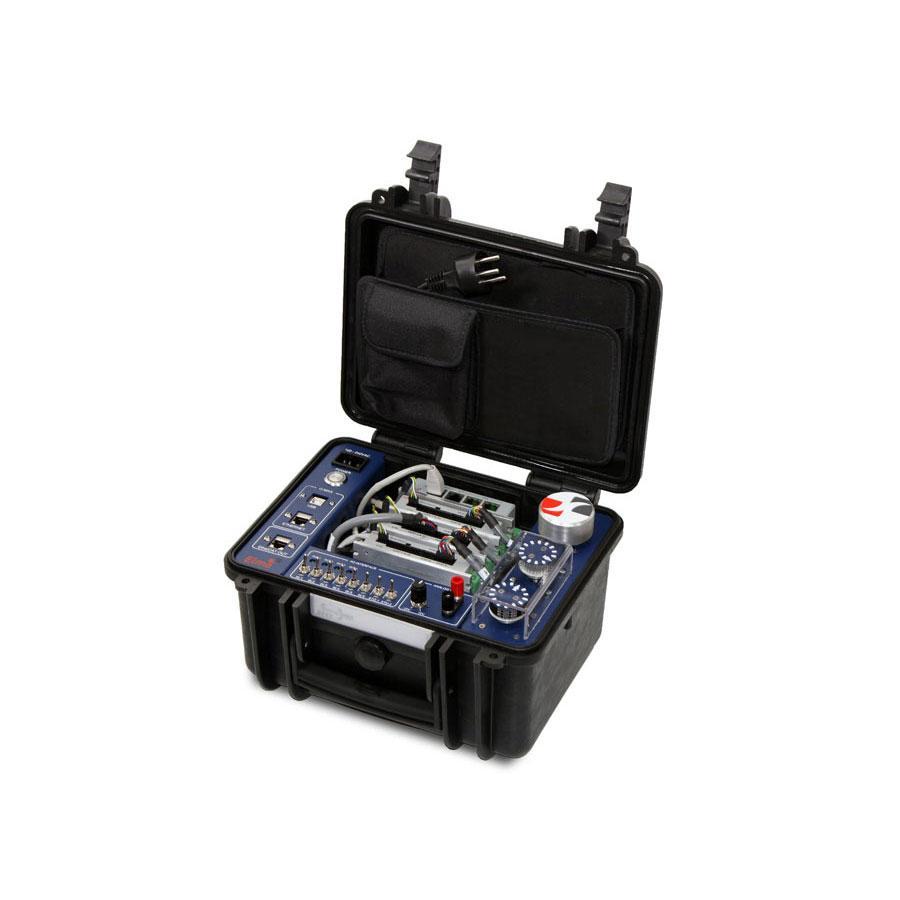

Mini Etude – Demo Case

Demo and Training Suitcase

This small and portable suitcase offers a unique opportunity to train
and demonstrate a full EtherCAT network motion solution. It consists of Elmo’s advanced Gold Maestro (GMAS) multi-axis, network controller,
Gold EtherCAT servos, 3 servo motors, and IO switches. Simply plug in the AC input (90VAC- 250VAC), connect a PC and the suitcase is ready to perform any motion scenario. If more than 3 axes are required, the user can easily network to additional suitcases. Weighing only 6kg and measuring 170 X 200 X 276mm, the case is always ready-to-use.

Features:

  • Connect any multi-axis systems
  • Run the GMAS on an actual system with servo drives and motors
  • Simulate tuning of real-life systems via a built-in resonant axis
  • Load firmware for one or several servo drives simultaneously over EtherCAT
  • Simulate GANTRY application
  • Conduct real testing of the servo drives with the motor
  • Connect motors with a belt and emulate resonant loads between them

Part Number:

MINI ETUDE-DEMO CASE
