Description
New Era in Servo Control
Ultra High Current Super Compact Servo Drive
Certified Functional Safety
Composer2, Software in the Loop
Powerful Drive’s Capability
Up to 270A/60V, 240A/80V, 210A/100V, 100A/200V

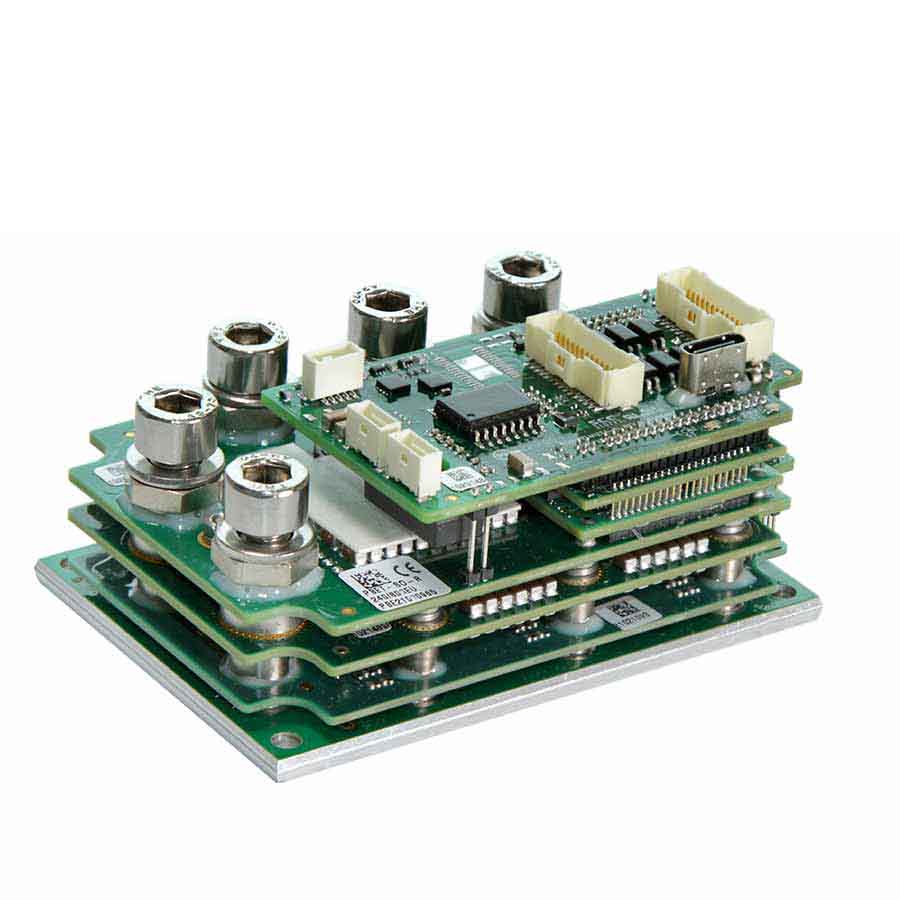

The Platinum Solo Triple Twitter is a ready-to-use, ultra high current servo drive and part of Elmo’s innovative Platinum series. The Platinum Solo Triple Twitter provides top servo performance, ultra-fast networking, increased processing power and rich feedback support.
This advanced high power density drive delivers up to 17 kW power in a 165.44 cm3 (10.09 Inch3) compact package 55 x 80 x 37.6 mm (2.16″ x 3.15″ x 1.48″).
The Platinum series was designed to meet the evolving needs of OEM designers for smarter, smaller, faster servo, with higher functionality and ease-of-use. Platinum drives aim to assist machine and robotic manufacturers in creating better machines through both superior motion-control and utmost safety.
Platinum Solo Triple Twitter HighlightsNEW
- World’s Highest Density Of Power And Intelligence
- High current servo drive Up to 270A/60V, 240A/80V, 210A/100V, 100A/200V
- Ultra Efficient, >99%
- Qualitative Power up to 17kW
- Ultra-Fast EtherCAT Networking
- Functional Safety IEC 61800-5-2 (SIL-3, Cat4 PL-e) & FSoE
- Integrated Safe I/Os (2 SIL3 inputs + 2 STO hardware inputs + SIL3 brake outputs)
Platinum Series HighlightsNEW
- Best-In-Class servo performance
- World’s smallest servo technology to feature functional safety and safety over EtherCAT (FSoE)
- Higher bandwidth, faster response, enhanced linearity and highest control resolutions
- Ultra-efficient EtherCAT with cycling down to 100us, high synchronization with negligible jitters and near zero latency
- Added feedback support: up to three simultaneously, or two absolute feedbacks
- Composer2, Proprietary Drive Level SIL( Software In The Loop), allows running customer’s control algorithms within the drive’s real-time
- High processing power with large memory resources for better control, enhanced processing, and real time recording

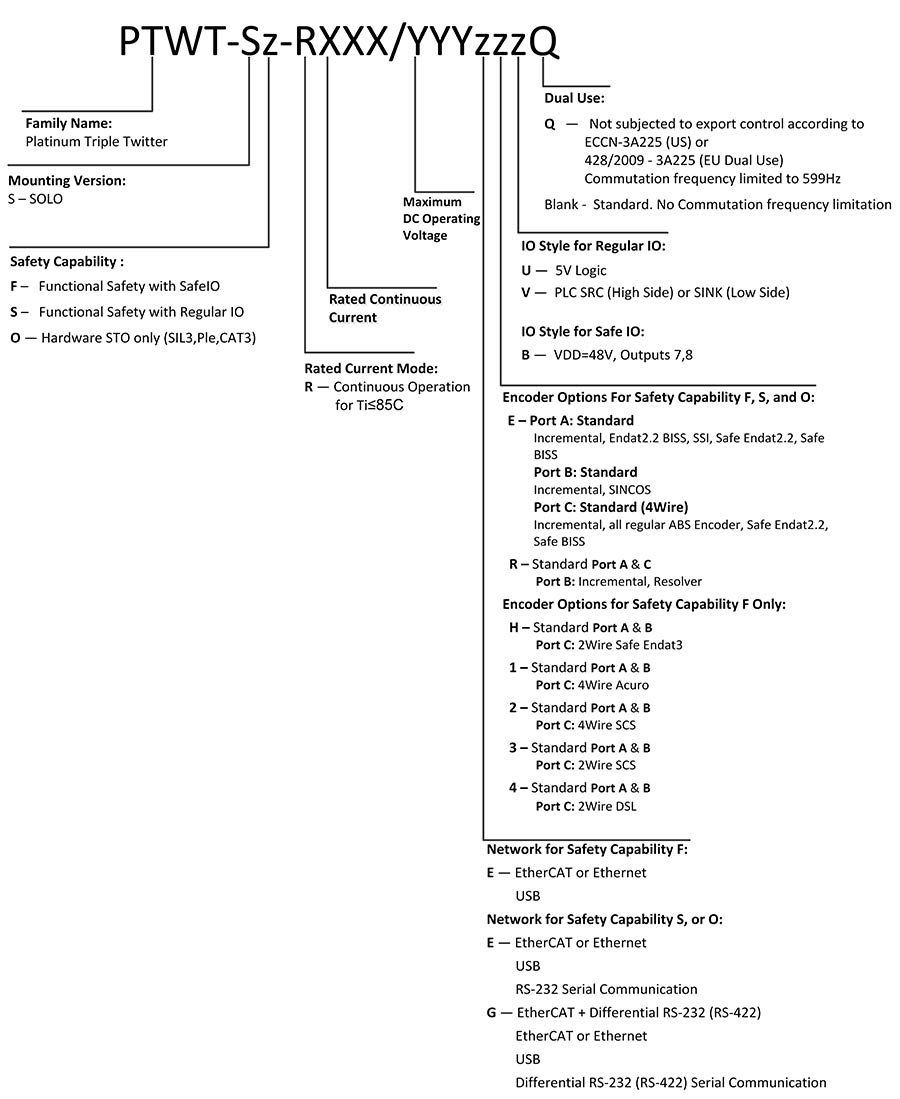

Feature | Units | R270/60 | R240/80 | R210/100 | R100/200 |
|---|---|---|---|---|---|
Minimum supply voltage | VDC | 10 | 20 | ||
Nominal supply voltage | VDC | 45 | 65 | 85 | 170 |
Maximum supply voltage | VDC | 55 | 75 | 95 | 195 |
Maximum continuous power output | kW | 12.5 | 15 | 17 | 16.5 |
Efficiency at rated power (at nominal conditions) | % | > 99 | |||
Maximum output voltage | Up to 96% of DC bus voltage | ||||
Amplitude sinusoidal/DC continuous current | A | 270 | 240 | 210 | 100 |
3-Phase Sinusoidal continuous RMS current limit (Ic) | A | 190 | 170 | 150 | 70 |
Peak current limit | A | Max Output current is guaranteed for THeat-Sink <85°C | |||
Control Supply
| Feature | Units | Units | Details |
|---|---|---|---|
| Control supply for input voltage where the Safety Capability is F, S | V | Isolated DC source: 12 to 60V | |
| Control supply for input voltage where the Safety Capability is O | V | Isolated DC source: 12 to 95V | |
| 24V Control supply input power consumption | Without encoder | W | ≤4 |
| With encoder up to 400mA@5V | W | ≤6 | |
| For Safety Capability F only With encoder up to 300mA@11V | W | ≤7 | |
Encoder Supply
| Feature | Details |
|---|---|
| 5V supply | 5V Nominal, 4.75V÷5.25V up to 400mA |
| 11V supply only with Safety Capability: F | 11V Nominal, 10.6V÷11.5V up to 300mA |
Feature | Units | All Types |
|---|---|---|
Weight | g (oz.) | ~210.0 g (7.41 oz) |
EtherCAT Version Dimension | mm (in) | 55 x 80 x 37.6 mm (2.16" x 3.15" x 1.48") |
Mounting method | Panel Based Mounting | |
Degrees of protection | IP=00 | |
- All Platinum line of servo drives feature functional safety (Learn more…)
- In compliance with IEC 61800-5-2 (SIL-3) standards & safety over EtherCAT (FSoE)
- Simple to implement safe-motion with rich functionality through Elmo Application 2.7 software (Learn more…)
- Platinum Solo Triple Twitter safety functions supported: STO, SLP, SLS, SS1, SS2, SOS, SBC and SLT
